7. Remove the hinge caps.
8. Remove the display bezel.
9. Remove the display panel.
About this task

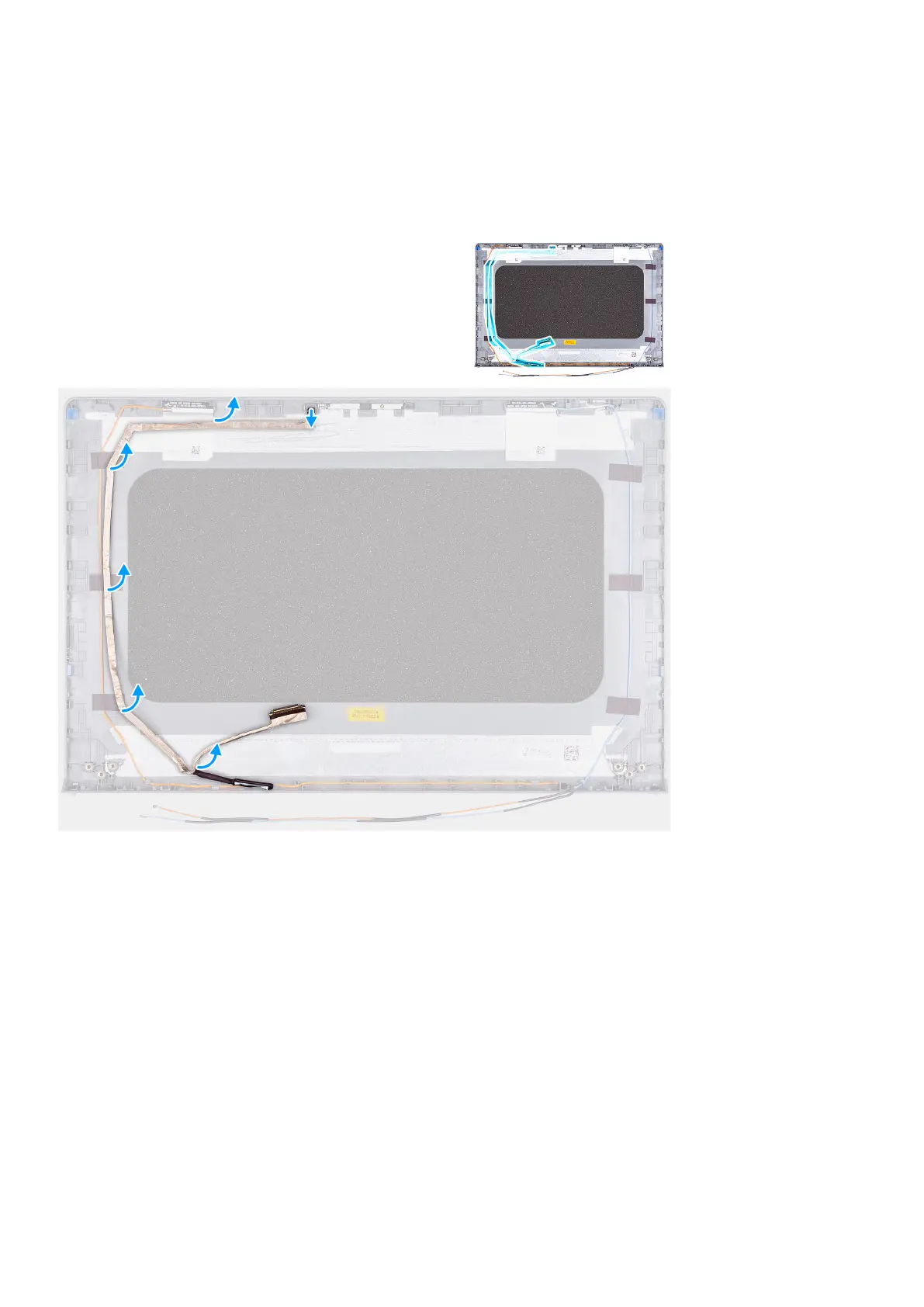

The following images indicate the location of the eDP cable and provides a visual representation of the removal procedure.
Steps
1. Disconnect the eDP cable from the camera module.
2. Carefully peel the eDP cable from the display back-cover.
Installing the eDP cable
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the eDP cable and provides a visual representation of the installation procedure.
68
Removing and installing components
