Palm-rest and keyboard assembly
Removing the palm-rest and keyboard assembly
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD card.
3. Remove the base cover.
4. Remove the battery.
5. Remove the WLAN card.
6. Remove the memory modules
7. Remove the display assembly.
8. Remove the SSD.
9. Remove the hard drive assembly.
10. Remove the speakers.
11. Remove the system fan.
12. Remove the heatsink.
NOTE: The system board can be removed along with the heat sink.
13. Remove the IO board.
14. Remove the touchpad.
15. Remove the power adapter port.
16. Remove the system board.
About this task

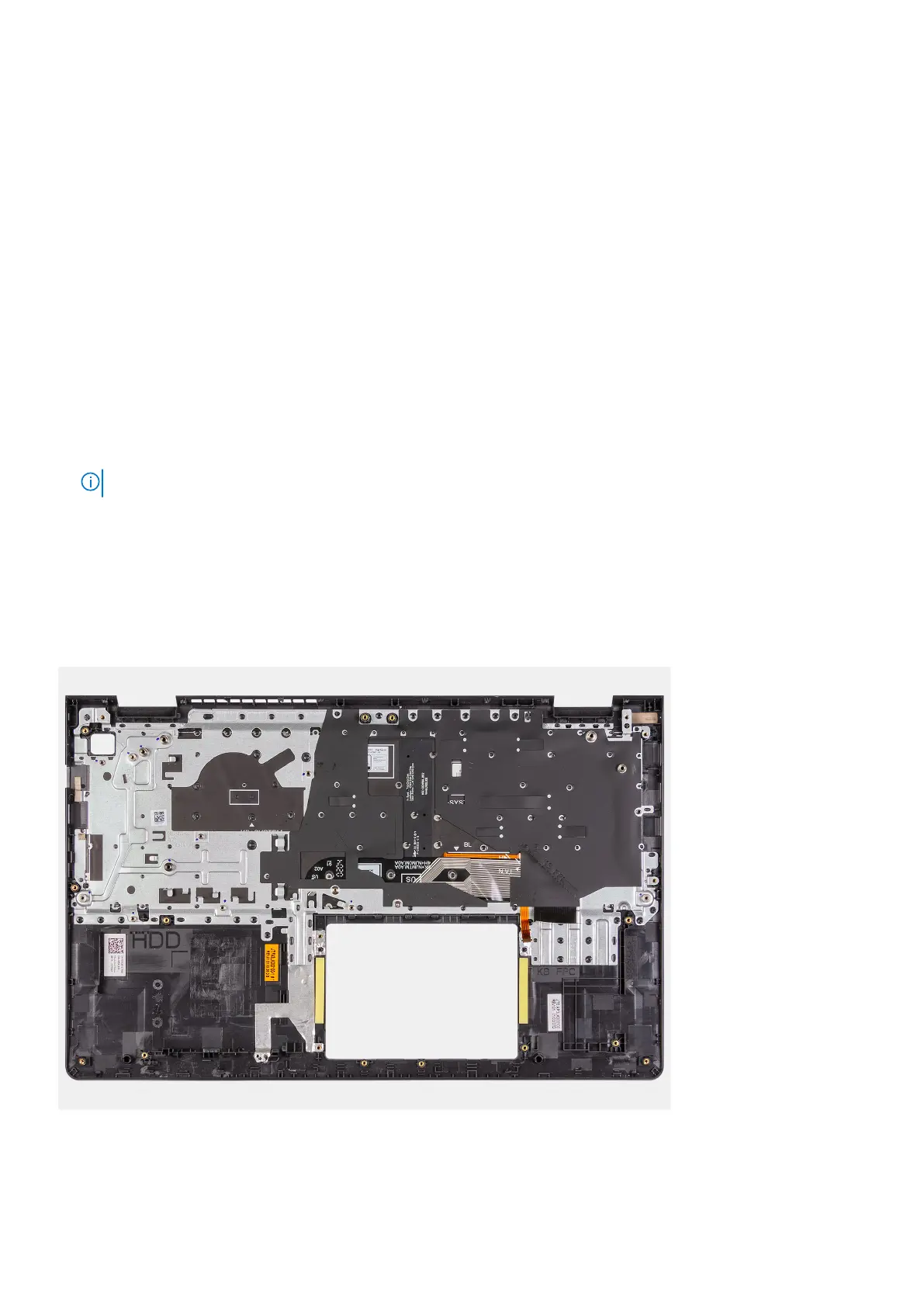

The following images indicate the location of the palm-rest and keyboard assembly, and provides a visual representation of the
installation procedure.
Steps
After performing the preceding steps, you are left with the palmrest and keyboard assembly.
