Steps

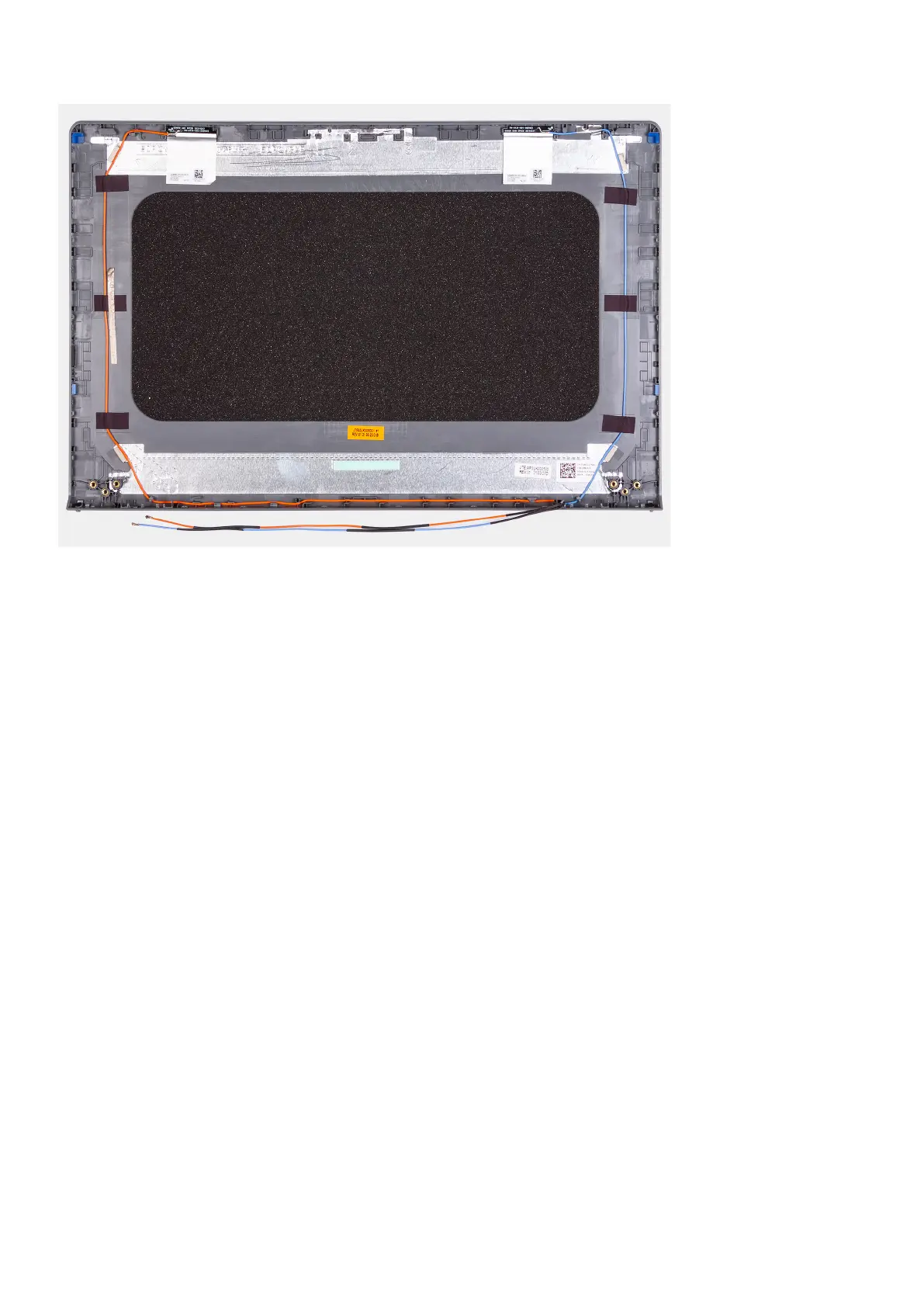

Place the display back-cover on a clean surface and perform the post-requisites to install the display back-cover.
Next steps
1. Install the camera.
2. Install the display panel.
3. Install the display bezel.
4. Install the hinge caps.
5. Install the display assembly.
6. Install the WLAN card.
7. Install the base cover.
8. Exit service mode.
9. Install the SD card.
10. Follow the procedure in after working inside your computer.
Power button
Removing the power button
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD card.
3. Enter service mode.
4. Remove the base cover.
5. Remove the IO board.
About this task
The following images indicate the location of the power button and provides a visual representation of the removal procedure.
Removing and installing components
71
