Installing the camera
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
Steps

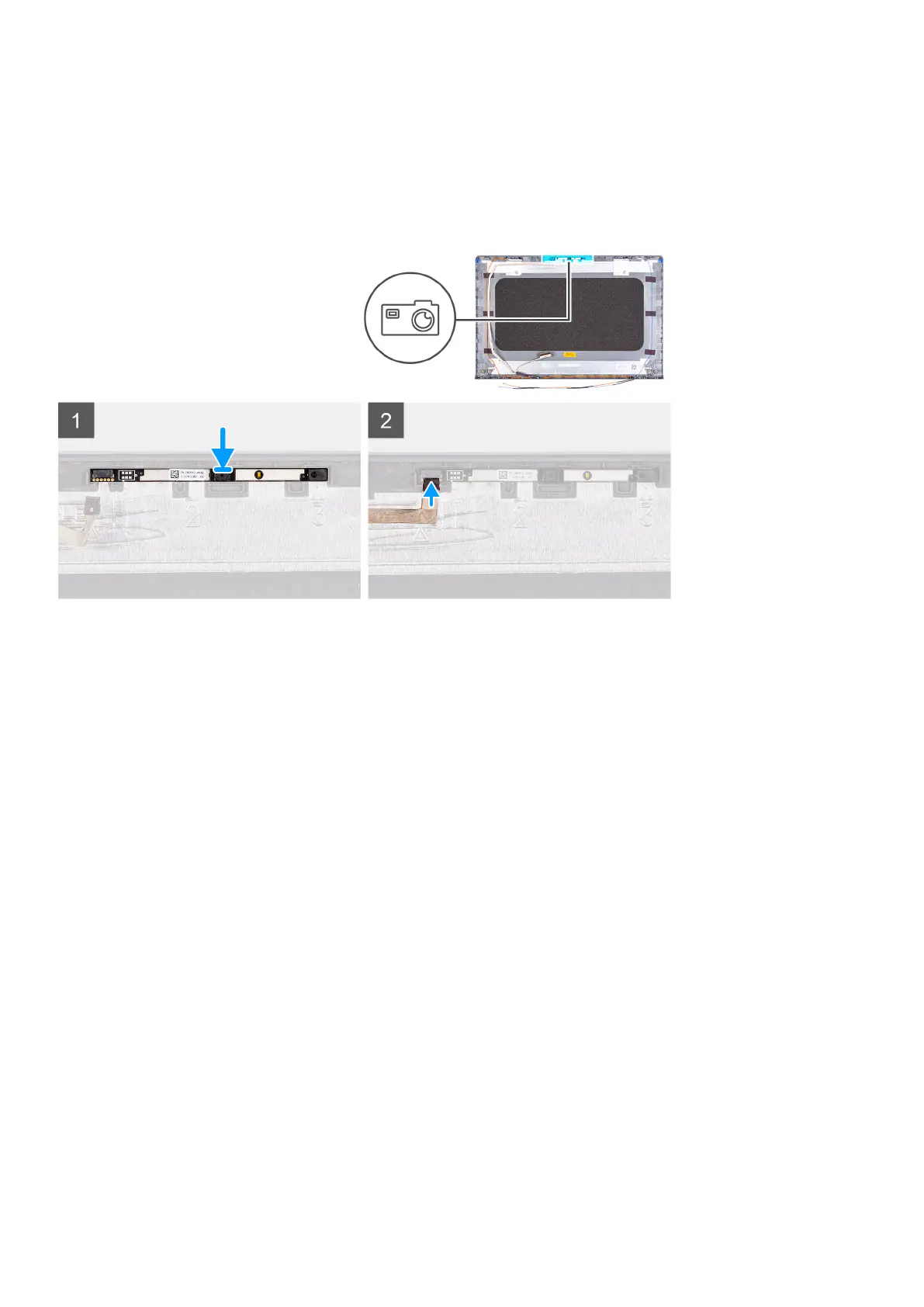

1. Using the alignment post, adhere the camera module on the display back-cover and antenna assembly.
2. Connect the camera cable to the camera module.
Next steps
1. Install the display panel.
2. Install the display bezel.
3. Install the hinge caps.
4. Install the display assembly.
5. Install the WLAN card.
6. Install the base cover.
7. Exit service mode.
8. Install the SD card.
9. Follow the procedure in after working inside your computer.
Display eDP cable
Removing the eDP cable
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the SD card.
3. Enter service mode.
4. Remove the base cover.
5. Remove the WLAN card.
6. Remove the display assembly.
Removing and installing components
67
