Dell 3333DN User Manual

Repair information 4-65
UICC cable removal

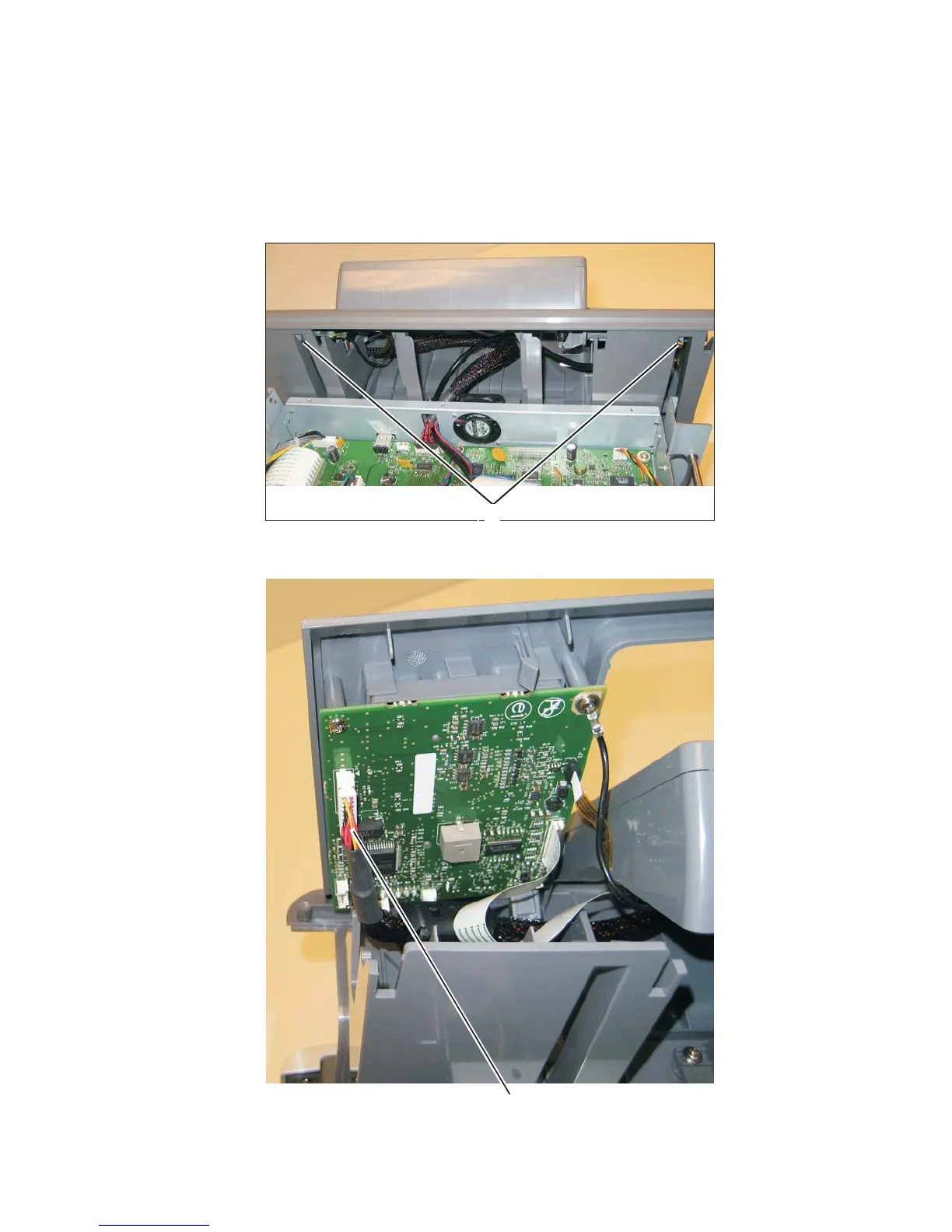

1. Lift the scanner assembly to the up position.
2. Disconnect the UICC cable from the controller board.
3. Feed the cable through the hole in the front of the controller card cage.
4. Release the two tabs (A) securing the keypad to the keypad to the tub assembly.
5. Disconnect the UICC cable B) from the operator panel PCB assembly.
A

Dell 3333DN Specifications

General

Functions	Print, Copy, Scan, Fax
Automatic Document Feeder	Yes
ADF Capacity	50 sheets
Scanner Type	Flatbed, ADF
Fax Speed	33.6 Kbps
Duty Cycle	Up to 50, 000 pages per month
Display	2-line LCD
Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Connectivity	USB, Ethernet
Scan Resolution	1200 x 1200 dpi
Maximum Paper Size	Legal
