Dell 3333DN User Manual

Repair information 4-97

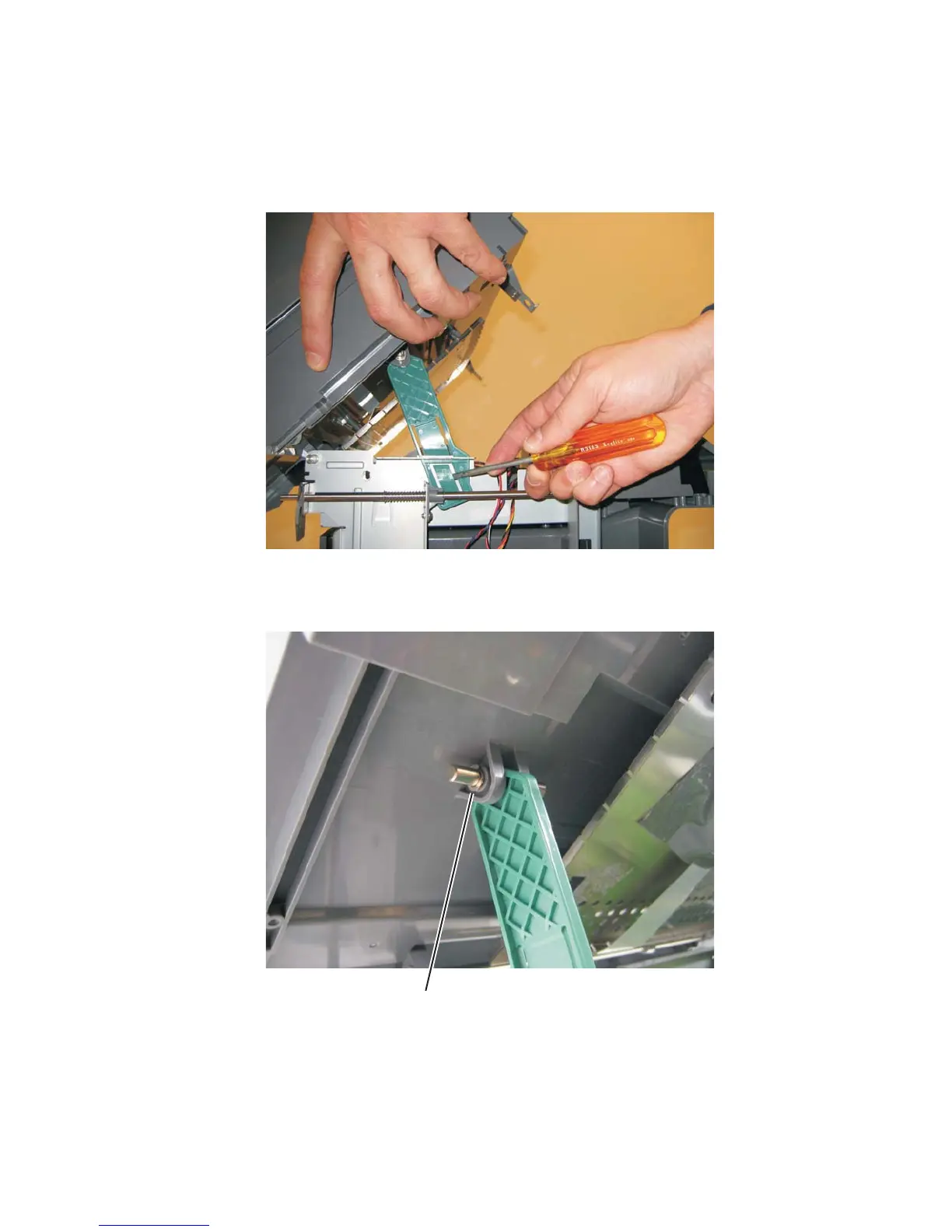

Kickstand removal
1. Lift the flatbed assembly to the up position.
2. Release the kickstand from the left rear frame assembly by depressing the tab holding the kickstand in
place.
3. Remove the e-clip (A) securing the kickstand rod to the flatbed.
4. Slide the rod out and remove the kickstand from the flatbed.
A

Dell 3333DN Specifications

General

Functions	Print, Copy, Scan, Fax
Automatic Document Feeder	Yes
ADF Capacity	50 sheets
Scanner Type	Flatbed, ADF
Fax Speed	33.6 Kbps
Duty Cycle	Up to 50, 000 pages per month
Display	2-line LCD
Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Connectivity	USB, Ethernet
Scan Resolution	1200 x 1200 dpi
Maximum Paper Size	Legal
