Dell 3333DN User Manual

Diagnostics information 2-5

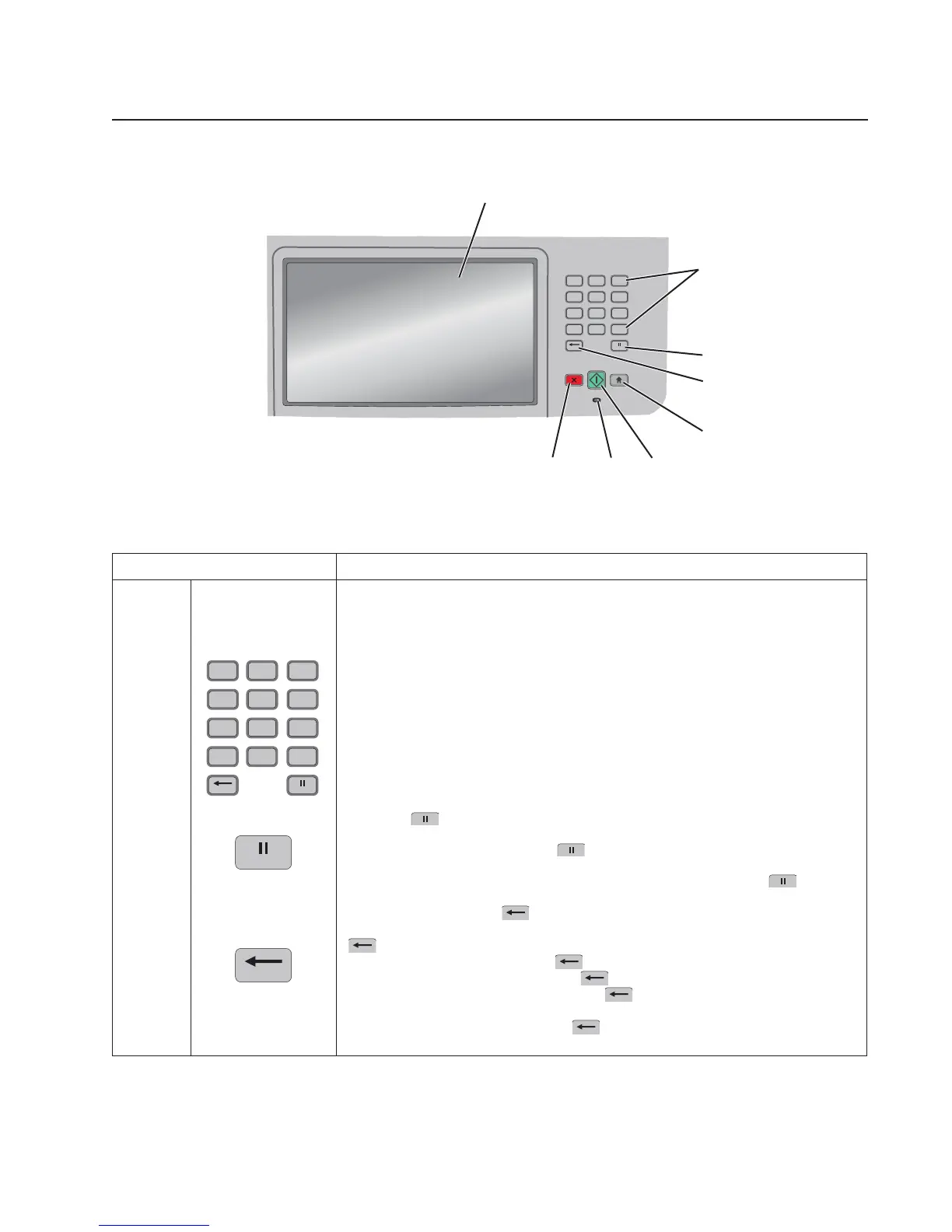

Overview of the operator panel and menus
The use of the buttons and the layout of the display panel are described in the following table.
Item Description
1 Display View scanning, copying, faxing, and printing options as well as status and error
messages.
2 Keypad Enter numbers or symbols on the display.
3 Dial Pause • Press to cause a two- or three-second dial pause in a fax number. In the
Fax To field, a Dial Pause is represented by a comma (,).
• From the home screen, press to redial a fax number.
• The button functions only within the Fax menu or with fax functions. When
outside of the Fax menu, fax function, or home screen, pressing causes
an error beep.
4 Back In the Copy menu, press to delete the right-most digit of the value in the Copy
Count.The default value of 1 appears if the entire number is deleted by pressing
numerous times.
In the Fax Destination List, press to delete the right-most digit of a number
entered manually. You can also press to delete an entire shortcut entry. Once
an entire line is deleted, another press of causes the cursor to move up one
line.
In the E-mail Destination List, press to delete the character to the left of the
cursor. If the character is in a shortcut, then the shortcut is deleted.
12
ABC
3
DEF
6
MNO
5
JKL
4
GHI
9
WXYZ
8
TUV
7
PQRS
#0
*
1
2
4
5
6
7
8
3
12
ABC
3
DEF
6
MNO
5
JKL
4
GHI
9
WXYZ
8
TUV
7
PQRS
#0
*

Dell 3333DN Specifications

General

Functions	Print, Copy, Scan, Fax
Automatic Document Feeder	Yes
ADF Capacity	50 sheets
Scanner Type	Flatbed, ADF
Fax Speed	33.6 Kbps
Duty Cycle	Up to 50, 000 pages per month
Display	2-line LCD
Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Duplex Printing	Yes
Paper Capacity	250 sheets
Connectivity	USB, Ethernet
Scan Resolution	1200 x 1200 dpi
Maximum Paper Size	Legal
