Repair information 4-67
Display rotation support removal
1. Remove the operator panel display. See “Operator panel display removal” on page 4-63.

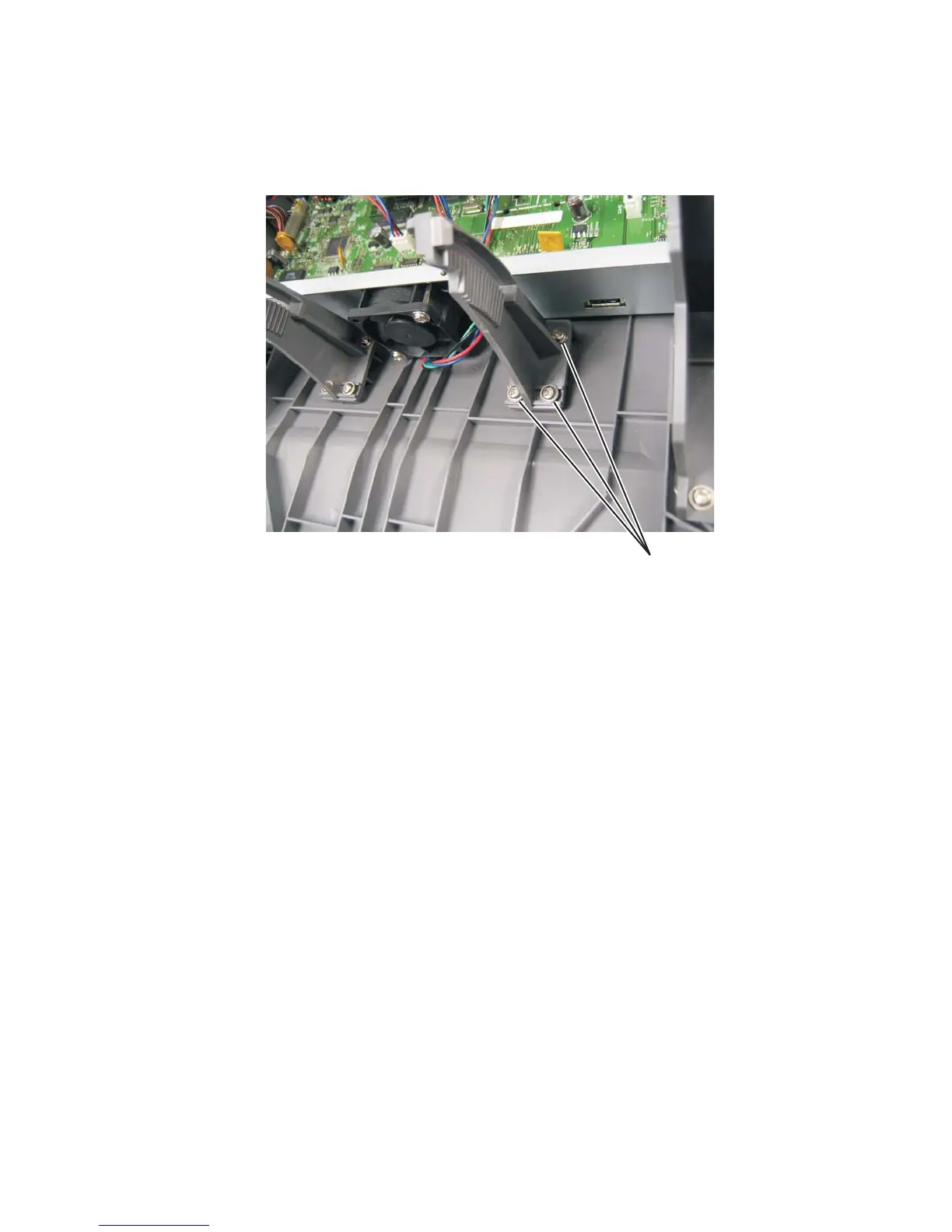

2. Remove the three screws (A) securing the display rotation support to the tub assembly.
Note: The same steps are performed for both supports.
A
