Replacing the display assembly
WARNING: Before working inside your computer, read the safety information that shipped with your computer and
follow the steps in Before working inside your computer. After working inside your computer, follow the instructions
in
After working inside your computer. For more safety best practices, see the Regulatory Compliance home page at
www.dell.com/regulatory_compliance.
Procedure

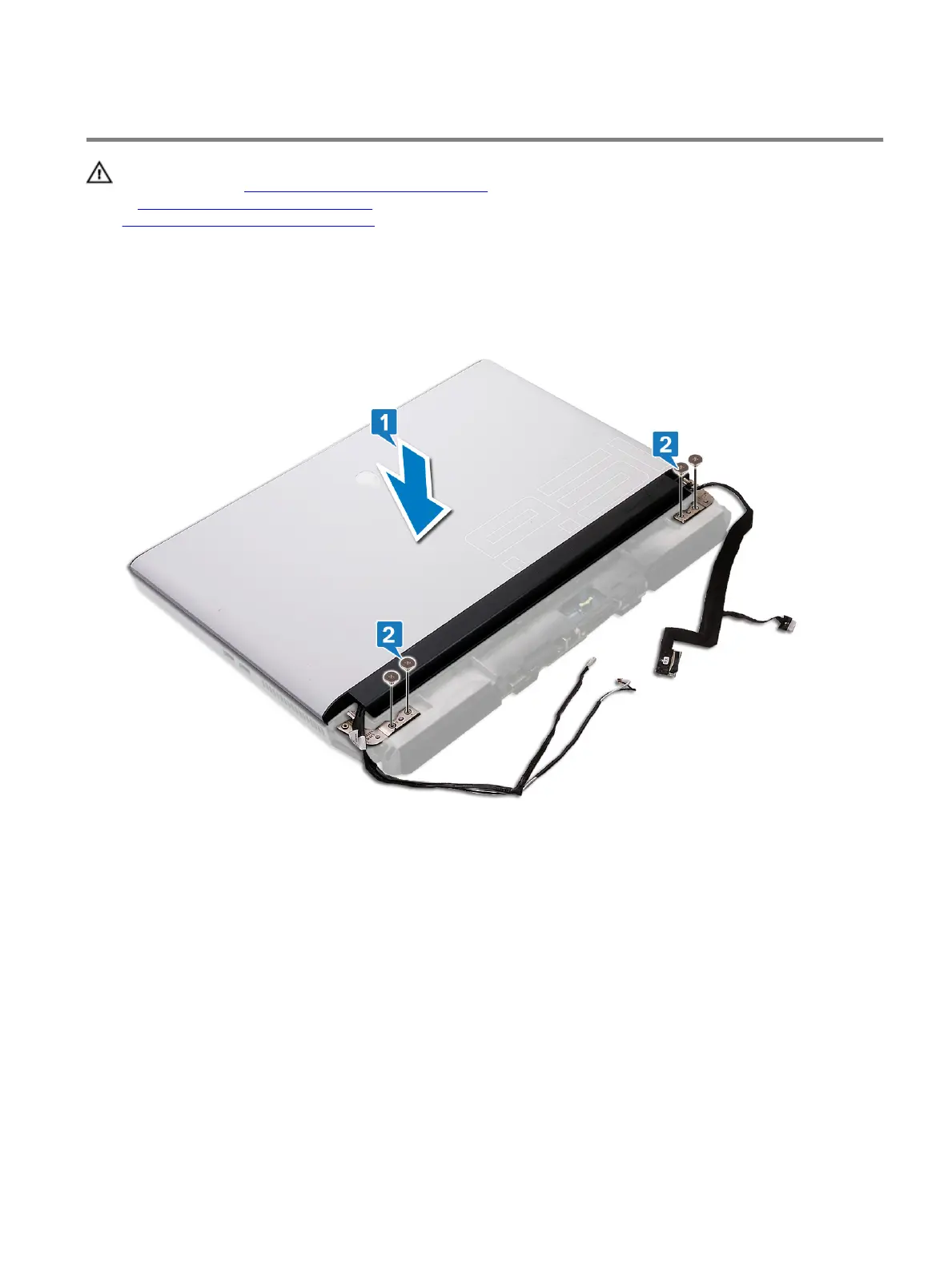

1 Align the screw holes on the display hinges with the screw holes on the palm-rest assembly.
2 Replace the four screws (M2.5x2.5) that secure the display assembly to the palm-rest assembly.
3 Turn the computer over.
4 Replace the two screws (M2.5x8) that secure the computer base to the display assembly.
5 Adhere the tobii cable to the computer base.
6 Route the antennas cable through the routing guides on the computer base.
7 Connect the tobii cable to the system board.
8 Adhere the display cable and the camera cable to the computer base.
9 Connect the camera cable to the system board.
10 Connect the display cable to the system board.
11 Align the screw hole on the display-cable bracket with the screw hole on the system board.
55
