Steps

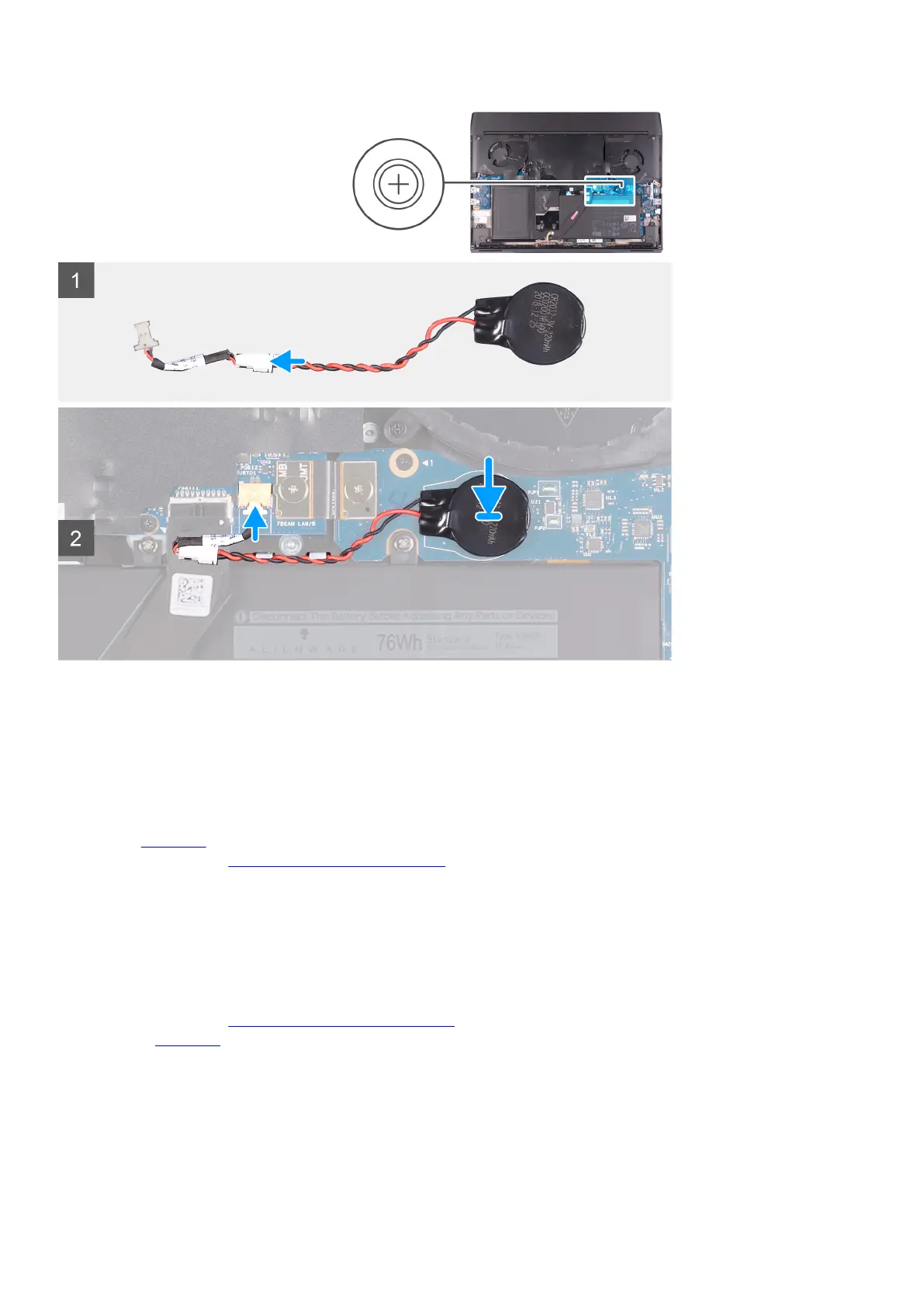

1. Connect the coin-cell battery to the coin-cell battery cable.
2. Adhere the coin-cell battery onto the RTC marking on the right I/O-board.
3. Connect the coin-cell battery cable to the connector on the system board.
Next steps
1. Install the base cover.
2. Follow the procedure in
After working inside your computer.
Speakers
Removing the speakers
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
About this task
The following image indicates the location of the speakers and provides a visual representation of the removal procedure.
20
