Installing the power-button assembly
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

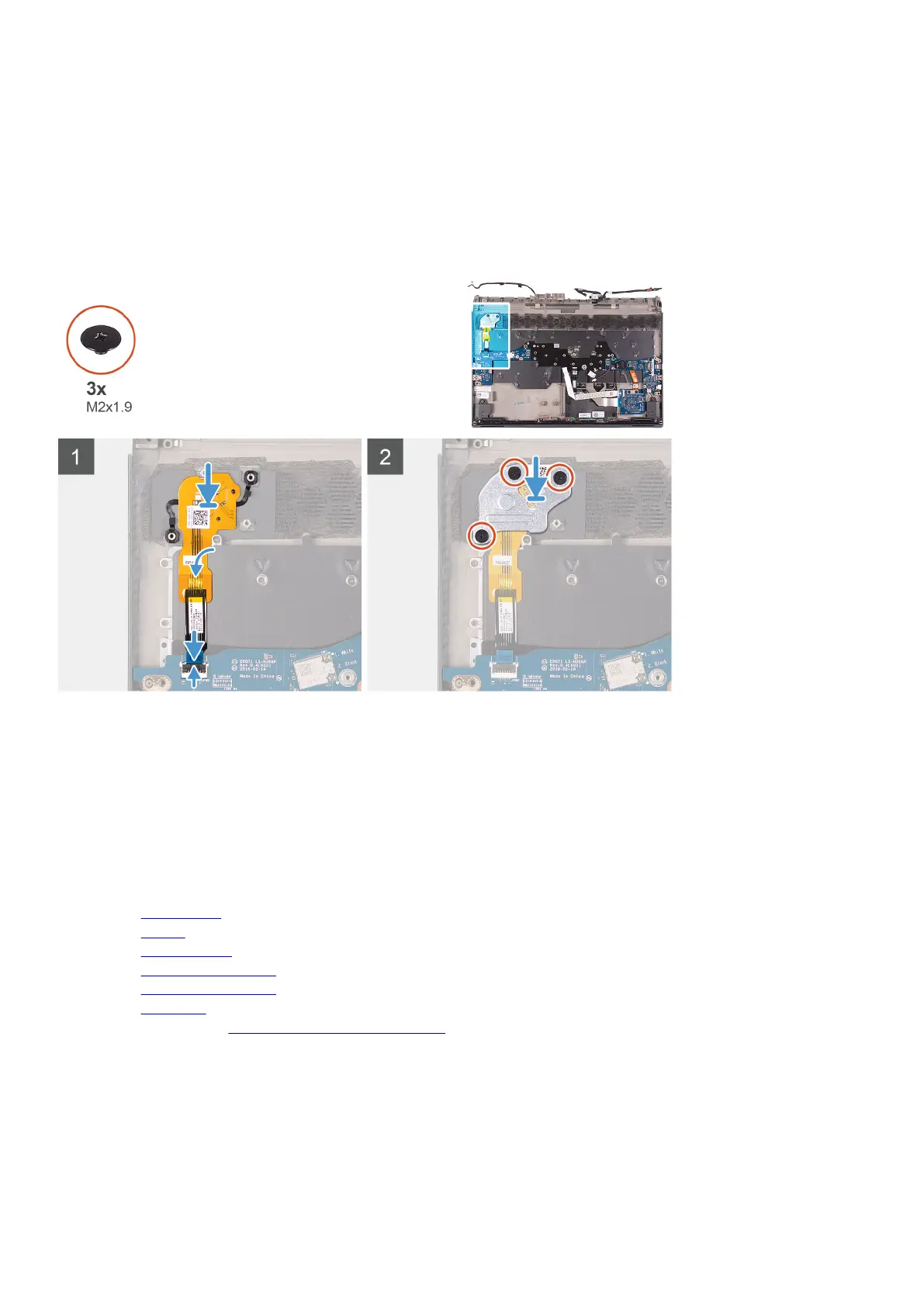

The following image indicates the location of the power-button assembly and provides a visual representation of the installation
procedure.
Steps
1. Place the power-button assembly and its cable in the slot on the palm-rest assembly.
2. Place the power-button bracket on the power-button assembly.
3. Connect the power-button assembly cable to the left I/O-board and close the connector latch.
4. Replace the three (M2x1.9) screws that secure the power-button bracket to the palm-rest assembly.
5. Adhere the power-button assembly cable on the palm-rest assembly.
Next steps
1. Install the
system board.
2. Install the battery.
3. Install the rear I/O-cover.
4. Install the 2230 solid-state drive. (if applicable)
5. Install the 2280 solid-state drive. (if applicable)
6. Install the base cover.
7. Follow the procedure in After working inside your computer.
