11. Connect the antenna cables to the wireless card.
The following table provides the antenna-cable color scheme for the wireless card supported by your computer.
Table 2. Antenna-cable color scheme
Connectors on the wireless card Antenna-cable color
Main (white triangle) White
Auxiliary (black triangle) Black
12. Place the wireless card bracket on the wireless card.
13. Replace the screw (M2x3) that secures the wireless card bracket to the left I/O-board.
14. Adhere the Mylar over the system board.
Next steps
1. Install the
rear I/O-cover.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.
Battery
Removing the battery
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the 2230 solid-state drive. (if applicable)
4. Remove the
2280 solid-state drive. (if applicable)
About this task

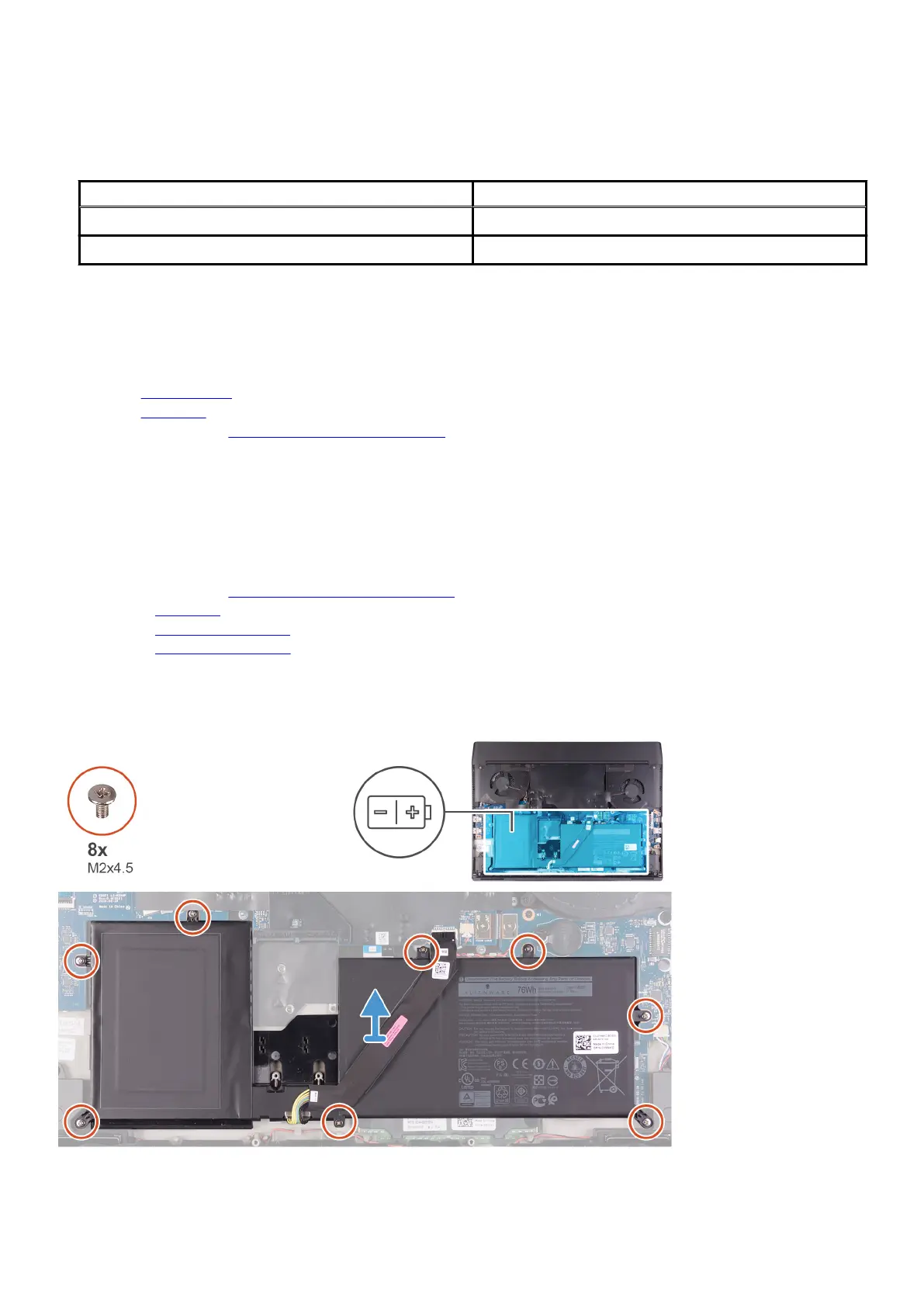

The following image indicates the location of the battery and provides a visual representation of the removal procedure.
30
