Dell Alienware m17 R2 User Manual

7. Follow the procedure in After working inside your computer.
Power-adapter port
Removing the power-adapter port
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the base cover.
3. Remove the
2230 solid-state drive. (if applicable)
4. Remove the
2280 solid-state drive. (if applicable)
5. Remove the rear I/O-cover.
6. Remove the battery.
7. Remove the system board.
About this task

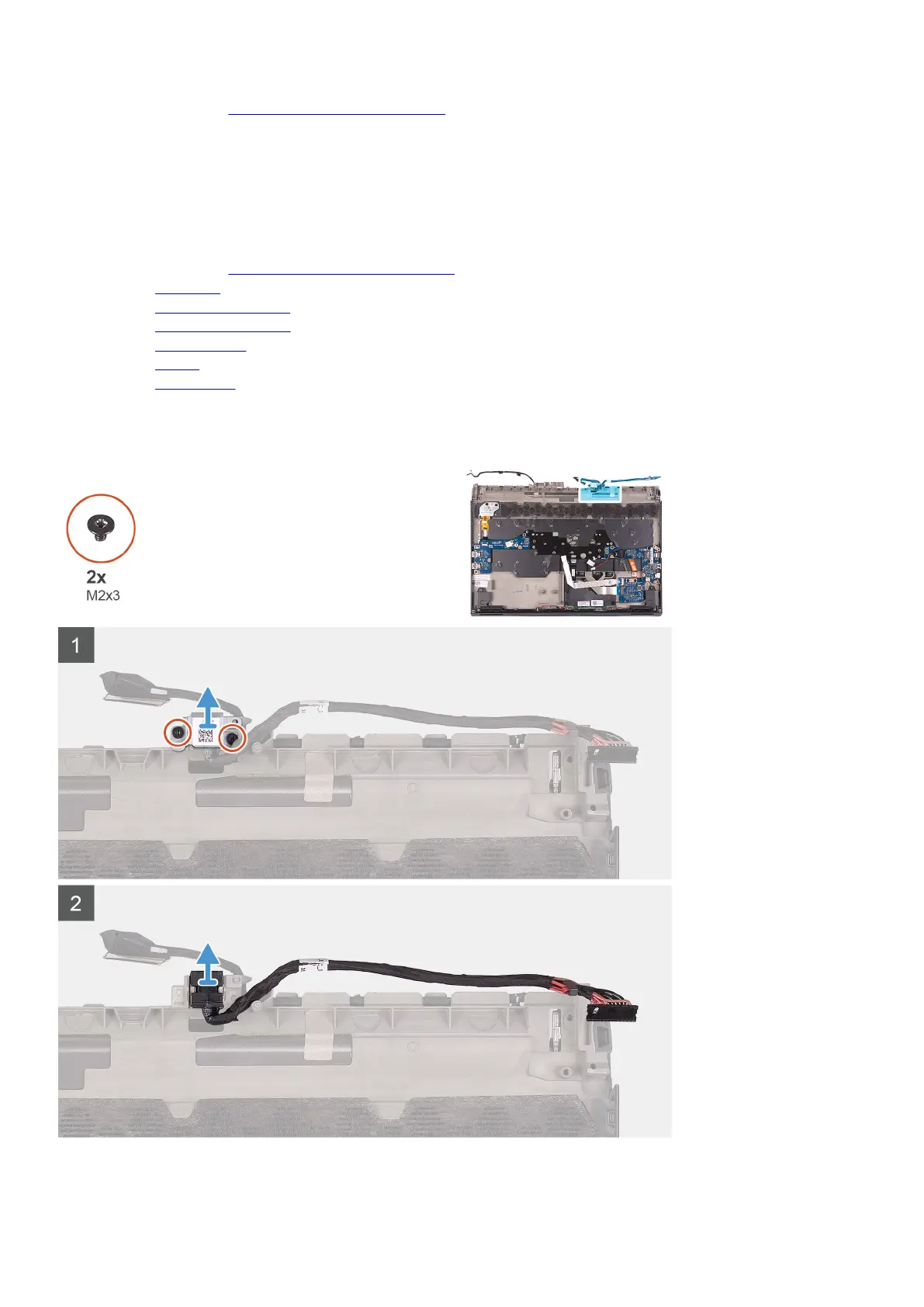

The following image indicates the location of the power-adapter port and provides a visual representation of the removal procedure.
