System board
Removing the system board
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the base cover.
3. Remove the 2230 solid-state drive. (if applicable)
4. Remove the
2280 solid-state drive. (if applicable)
5. Remove the rear I/O-cover.
6. Remove the battery.
About this task

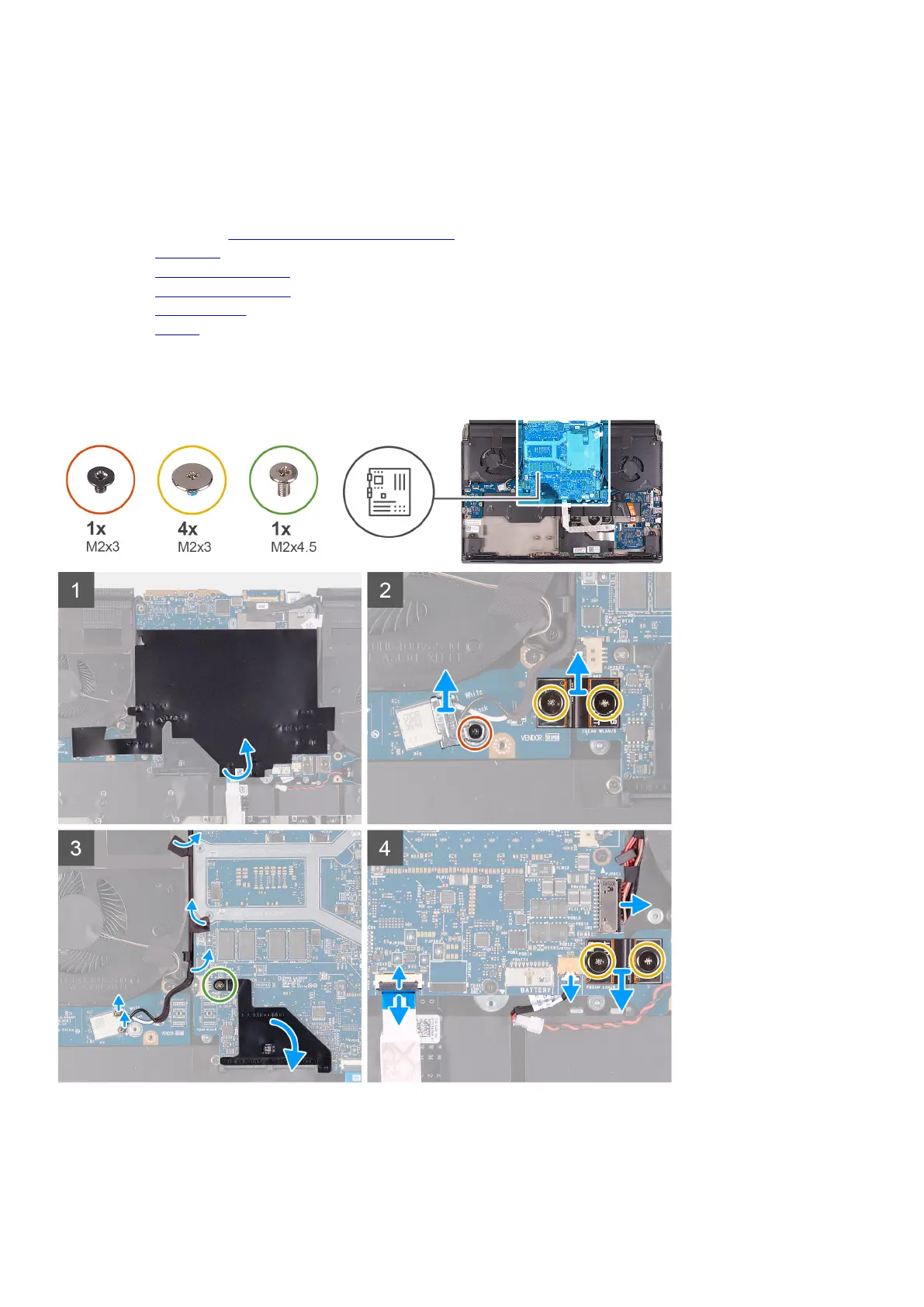

The following image indicates the location of the system board and provides a visual representation of the removal procedure.
