3. Remove the 2230 solid-state drive. (If applicable)
4. Remove the 2280 solid-state drive. (If applicable)
5. Remove the battery.
About this task

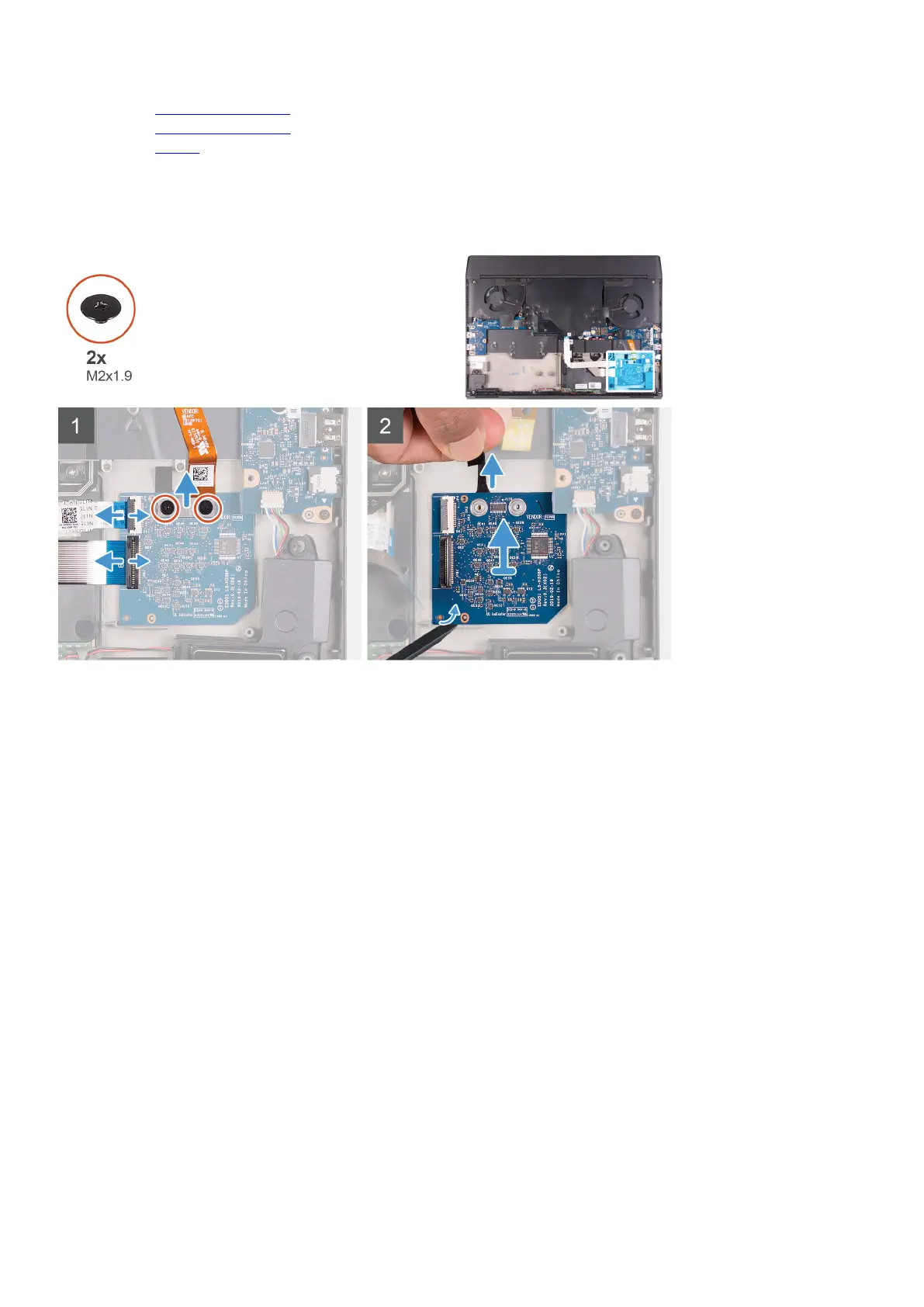

The following image indicates the location of the keyboard-controller board and provides a visual representation of the removal
procedure.
Steps
1. Remove the two screws (M2x1.9) that secure the keyboard-backlight cable to the keyboard-controller board.
2. Disconnect the keyboard-backlight cable from the keyboard-controller board.
3. Open the latch and disconnect the keyboard-controller board cable from the keyboard-controller board.
4. Open the latch and disconnect the keyboard cable from the keyboard-controller board.
5. Pull on the securing tab to release the keyboard-controls board from the palm-rest assembly.
6. Using the plastic tab, pry and remove the keyboard-controller board from the palm-rest assembly.
Installing the keyboard-controller board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the keyboard-controller board and provides a visual representation of the installation
procedure.
32
