Next steps
1. Install the system board.
2. Install the battery.
3. Install the rear I/O-cover.
4. Install the 2230 solid-state drive. (if applicable)
5. Install the 2280 solid-state drive. (if applicable)
6. Install the base cover.
7. Follow the procedure in
After working inside your computer.
Touchpad
Removing the touchpad
Prerequisites
1. Follow the procedure in
Before working inside your computer.
2. Remove the base cover.
3. Remove the 2230 solid-state drive. (if applicable)
4. Remove the 2280 solid-state drive. (if applicable)
5. Remove the rear I/O-cover.
6. Remove the
battery.
7. Remove the system board. (only applicable when the touchpad cable needs to be removed)
About this task

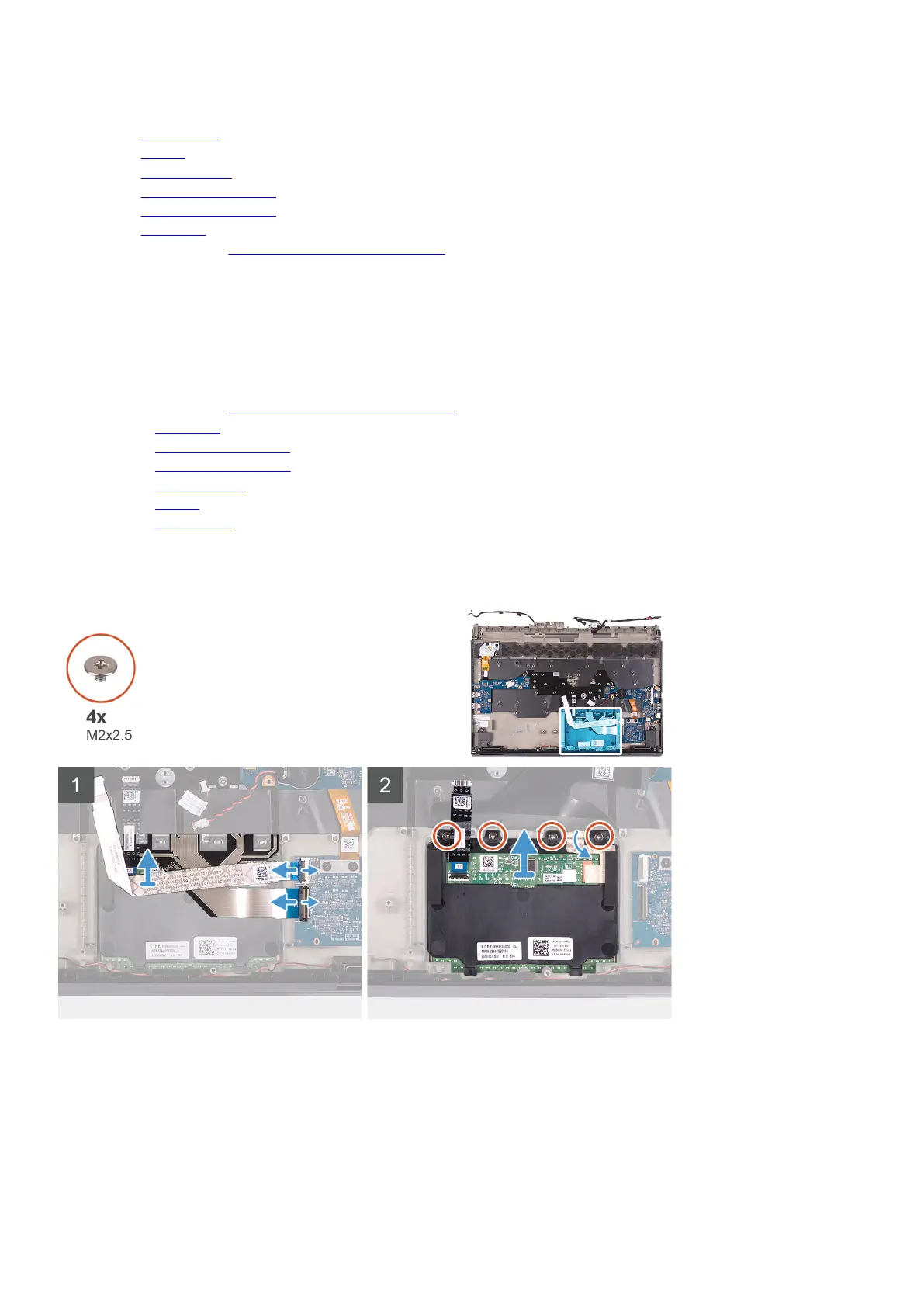

The following image indicates the location of the touchpad and provides a visual representation of the removal procedure.
Steps
1. Open the latch and disconnect the keyboard-controller board-cable from keyboard-controller board.
2. Lift the keyboard-controller board-cable off the palm-rest assembly.
3. Open the latch and disconnect the keyboard cable from the keyboard-controller board.
4. Fold up the keyboard cable.
5. Open the latch and disconnect the touchpad cable from the touchpad.
