Steps
1. Remove the two screws (M2x3) that secure the right I/O-board cable connecting the right I/O-board and the system board.
2. Lift the right I/O-board cable off the right I/O-board and system board.
3. Disconnect the speaker cable from the right I/O-board.
4. Peel the coin-cell battery off the right I/O-board.
5. Remove the two screws (M2x3) that secure the right I/O-board to the palm-rest assembly.
6. Lift the right I/O-board off the palm-rest assembly.
Installing the right I/O-board
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

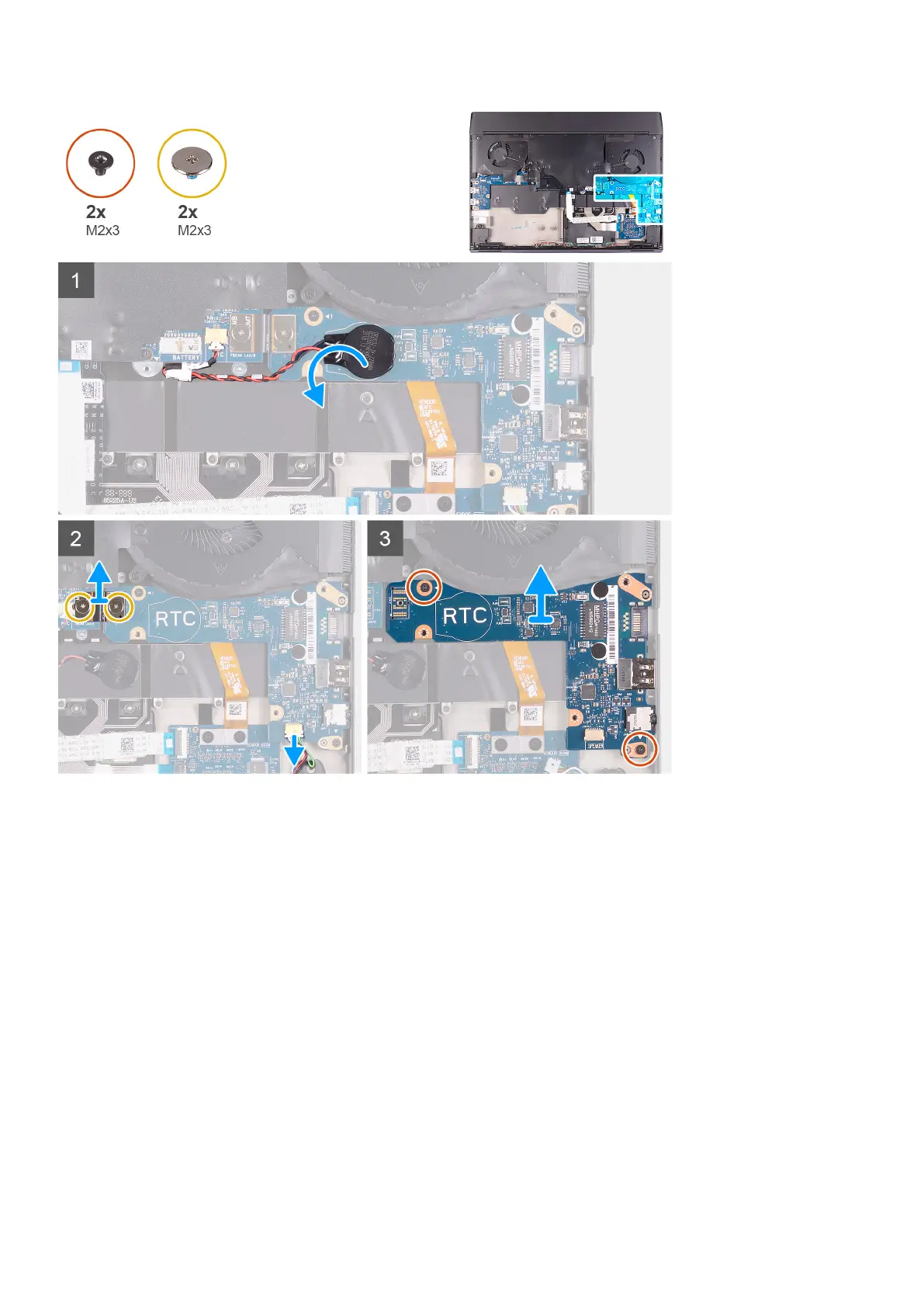

The following image indicates the location of the right I/O-board and provides a visual representation of the installation procedure.
