Steps
1. Ensure that the battery cable has been disconnected from the system board.
2. Remove the eight screws (M2x4.5) that secure the battery to the palm-rest assembly.
3. Remove the battery from the palm-rest assembly.
Installing the battery
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

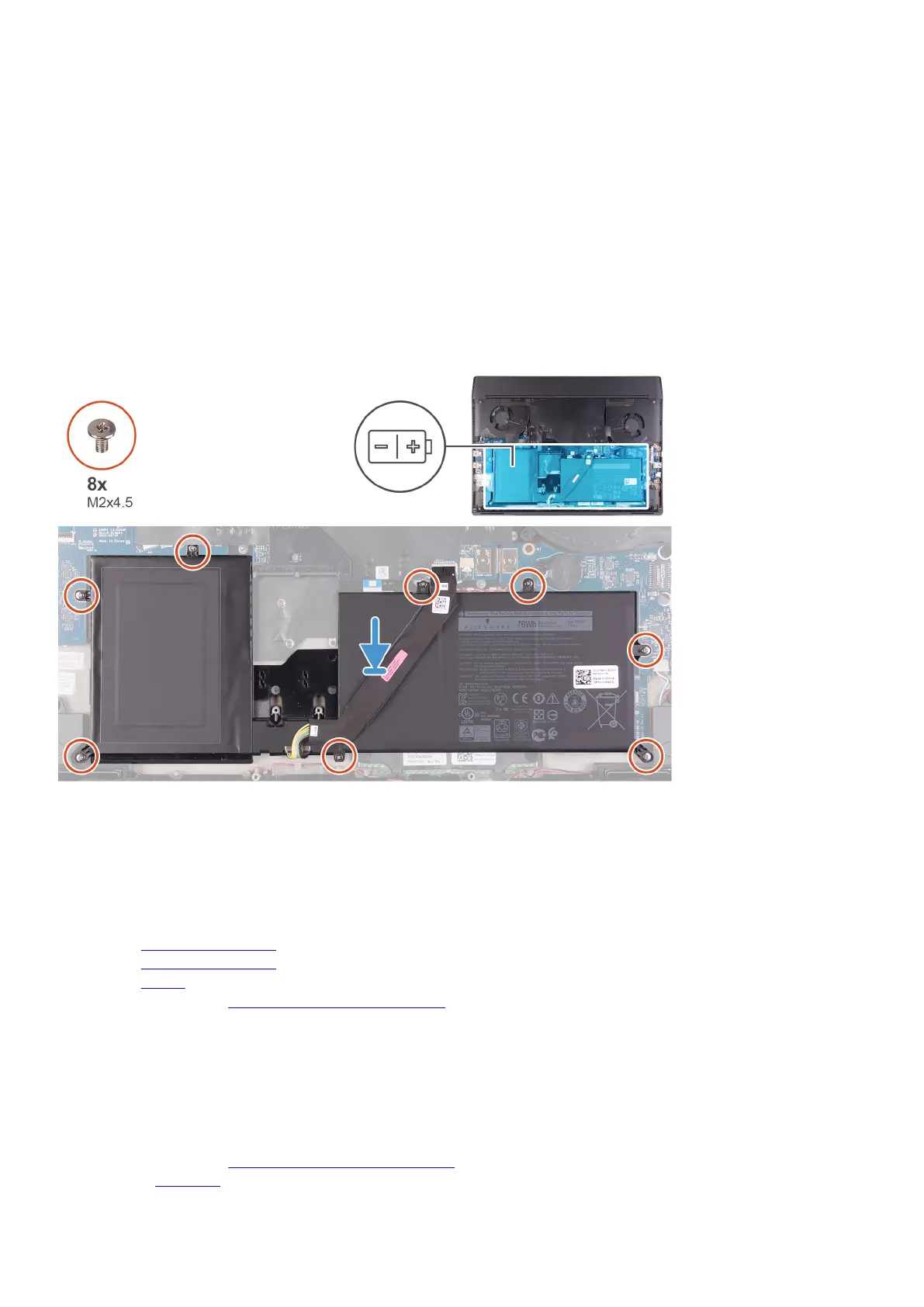

The following image indicates the location of the battery and provides a visual representation of the installation procedure.
Steps
1. Place the battery on the palm-rest assembly.
2. Replace the eight screws (M2x4.5) that secure the battery to the palm-rest assembly.
Next steps
1. Install the 2230 solid-state drive. (if applicable)
2. Install the 2280 solid-state drive. (if applicable)
3. Install the battery.
4. Follow the procedure in After working inside your computer.
Keyboard-controller board
Removing the keyboard-controller board
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
