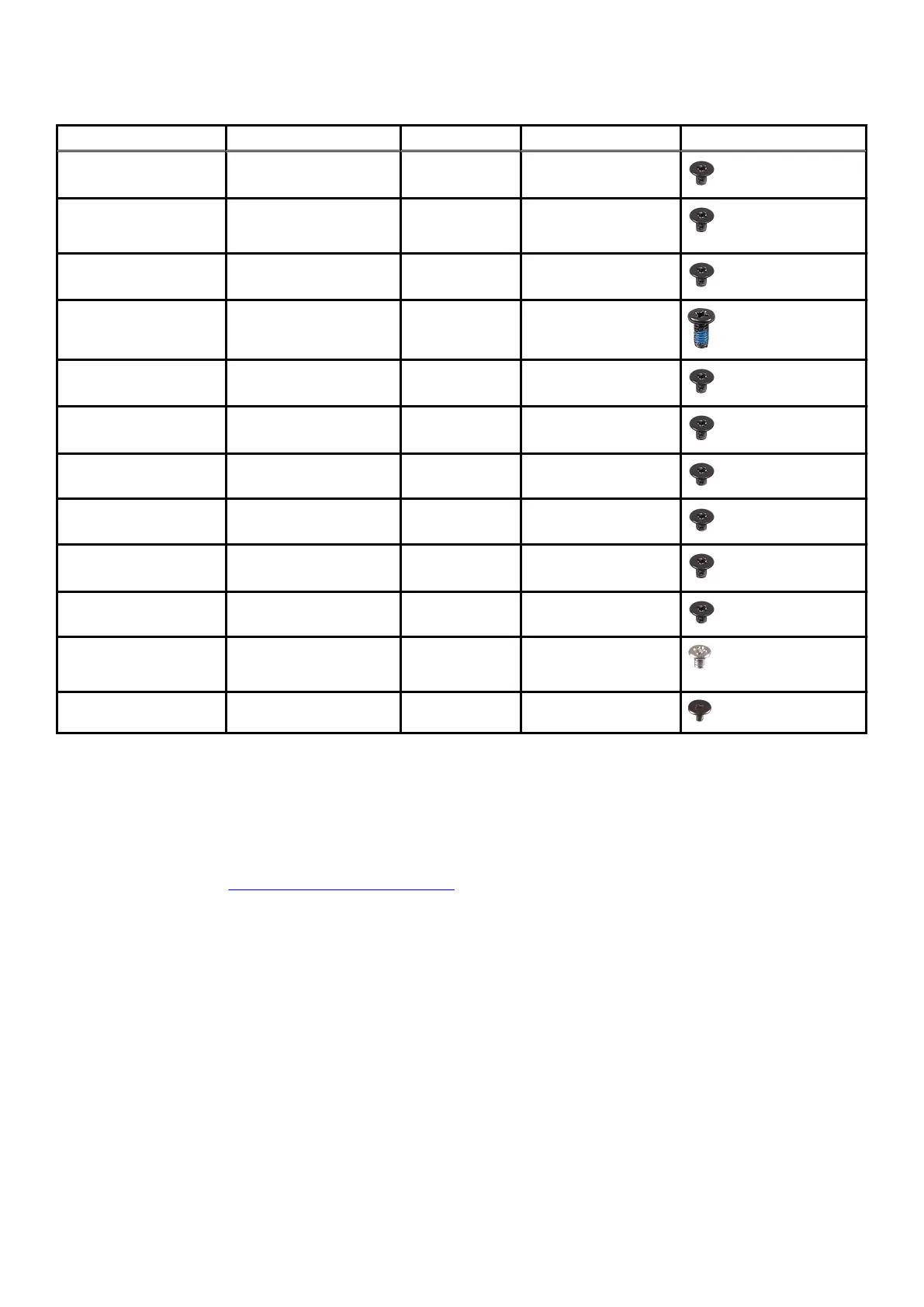

Table 1. Screw list(continued)
Component Secured to Screw type Quantity Screw image
Left I/O-board Palm-rest assembly M2x3 2
Right I/O-board
connector
• System board
• Right I/O-board
M2x3 2
Right I/O-board Palm-rest assembly M2x3 2
Fans Palm-rest assembly M2.5x5 4
System board Palm-rest assembly M2x3 5
Fan and heat-sink
assembly
System board M2x3 6
Solid-state drive support
bracket
Palm-rest assembly M2x1.9 2
Touchpad Palm-rest assembly M2x1.9 4
Power-adapter port
bracket
Palm-rest assembly M2x3 2
Power-button assembly Palm-rest assembly M2x1.9 3
Keyboard bracket
• Palm-rest assembly
• Keyboard
M1.2x2.1 14
Keyboard Palm-rest assembly M1.2x1.6 39
Base cover
Removing the base cover
Prerequisites
1. Follow the procedure in Before working inside your computer.
About this task
The following image indicates the location of the base cover and provides a visual representation of the removal procedure.
9
