Steps

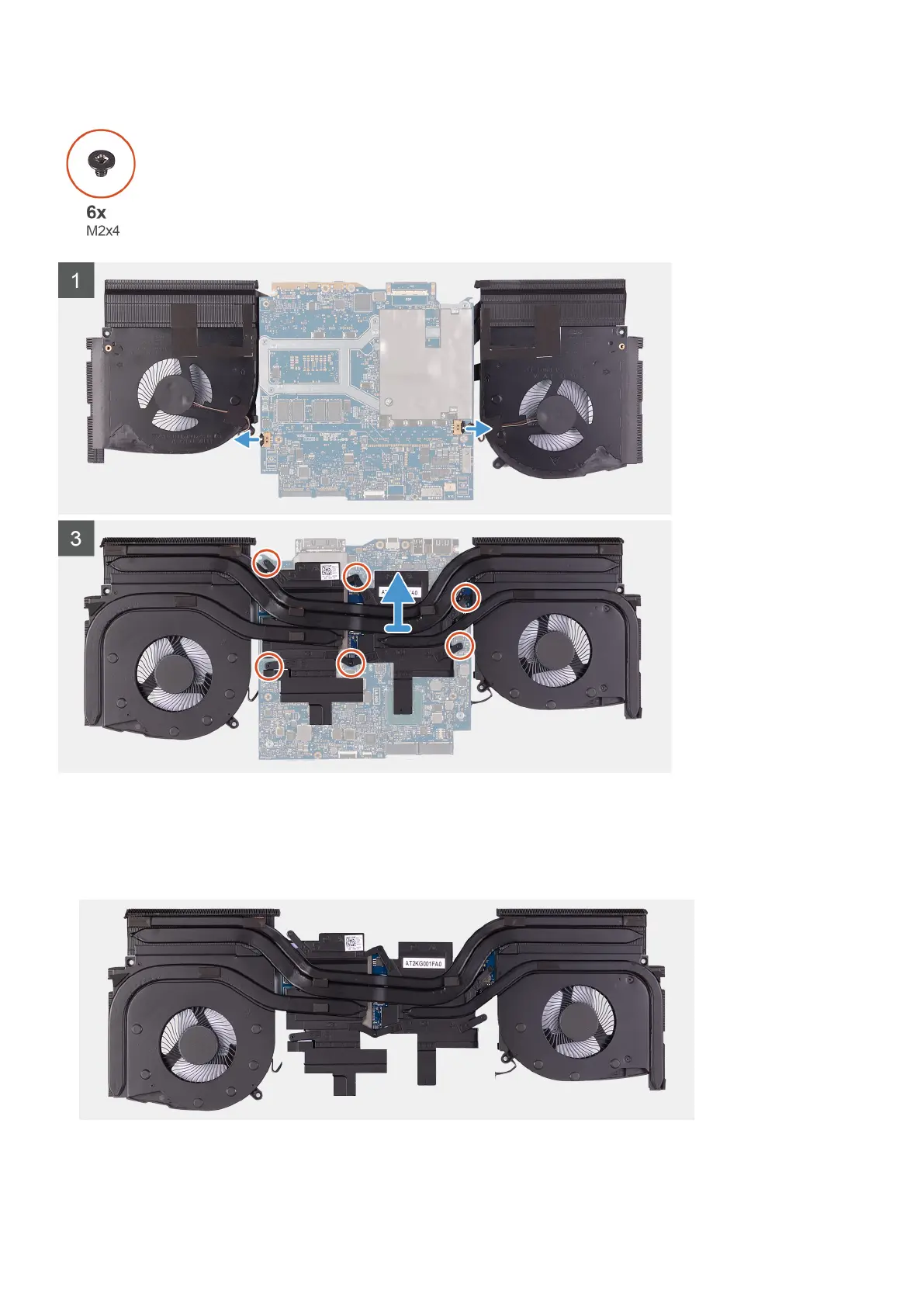

1. Disconnect the left and right fan cables from the system board.
2. In the reverse sequential order (6>5>4>3>2>1) remove the six screws (M2x3) that secure the fan and heat-sink assembly to the
system board.
3. Lift the fan and heat-sink assembly from the system board.
