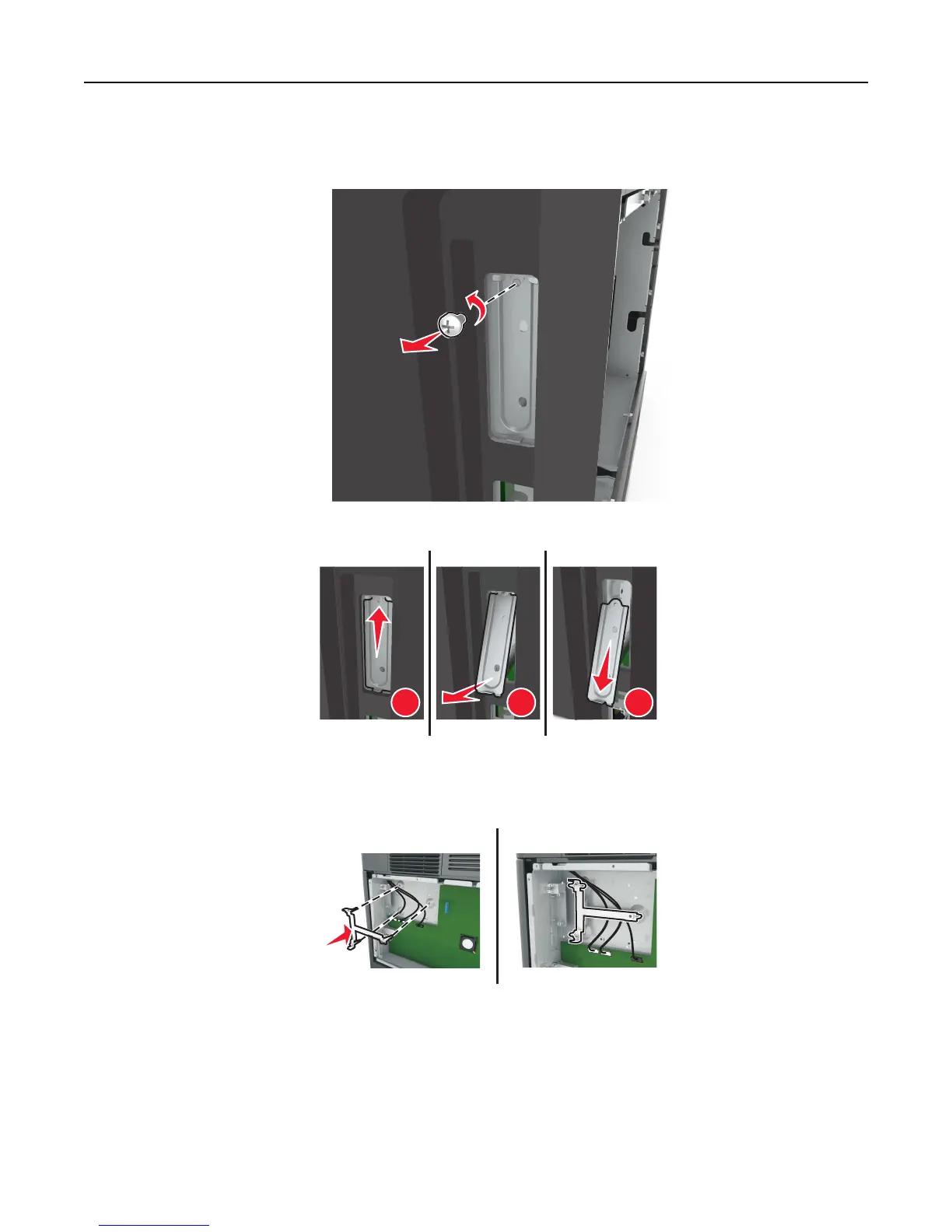

4 Remove the metal cover from the ISP opening.
a Loosen the screw.
b Lift the metal cover, and then pull it out completely.
1 2 3
5 Align the posts of the plastic bracket with the holes on the controller board cage, and then press the plastic bracket
on the controller board cage until it clicks into place. Make sure the cables are neatly tucked under the plastic
bracket.
Additional printer setup 19
