Dell B5460dn User Manual

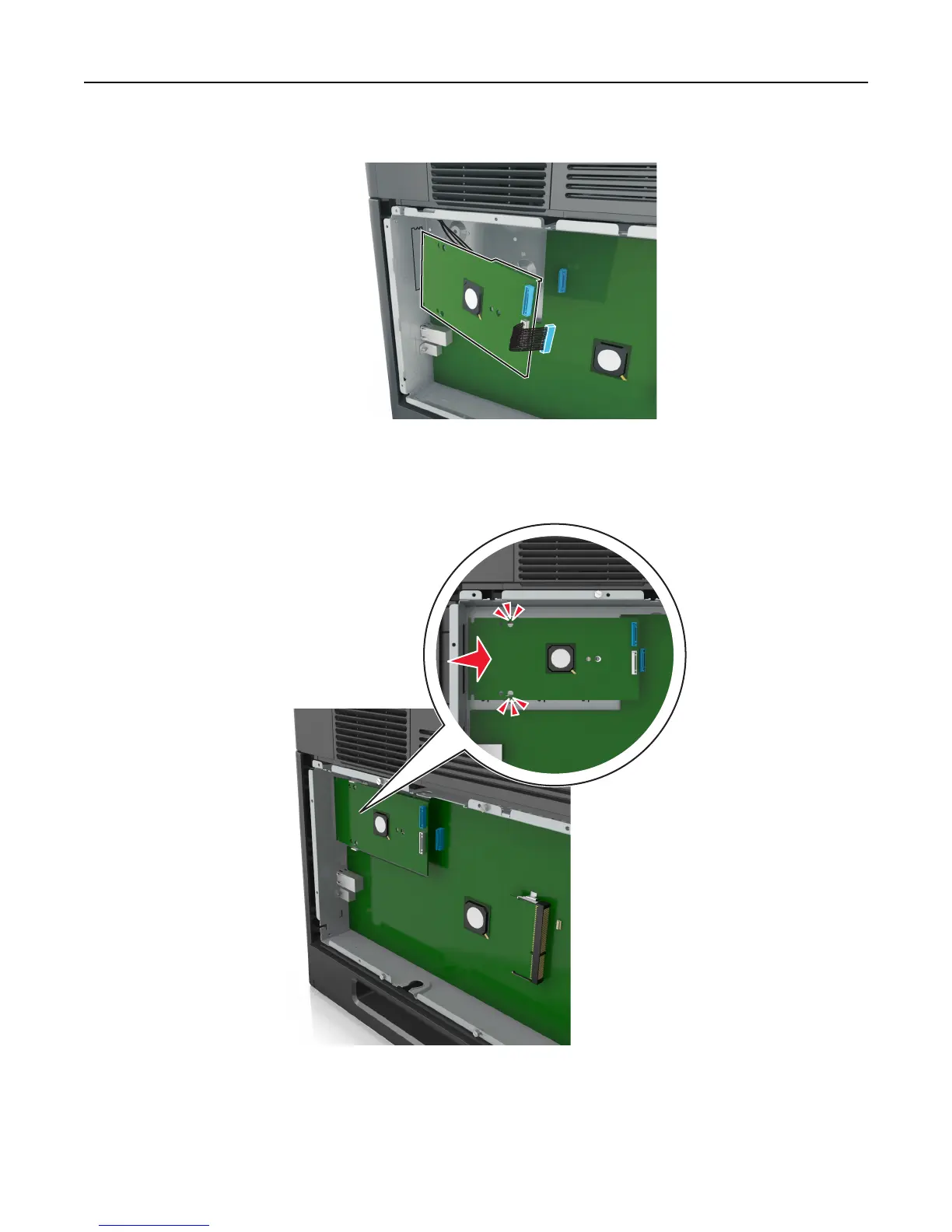

6 Install the ISP on the plastic bracket.
Note: Hold the ISP at an angle over the plastic bracket so that any overhanging connectors will pass through the
ISP opening in the controller board cage.
7 Lower the ISP toward the plastic bracket until the ISP is seated between the guides of the plastic bracket.
Additional printer setup 20

Dell B5460dn Specifications

General

Print Technology	Laser
Print Resolution	1200 x 1200 dpi
Standard Memory	512 MB
Processor Speed	800 MHz
Monthly Duty Cycle	Up to 275, 000 pages
Connectivity	USB 2.0, Ethernet
Duplex Printing	Standard
First Page Out Time	4.4 seconds
Maximum Paper Size	8.5 x 14 inches
Operating System Compatibility	Windows, Linux
Input Capacity	650 sheets (standard); 4, 400 sheets (maximum)
