Removing the M.2 2230 solid-state drive
For systems with solid-state drive in the hard drive bay will not support hard drive.
Prerequisites
1. Follow the procedure in before working inside your device.
About this task

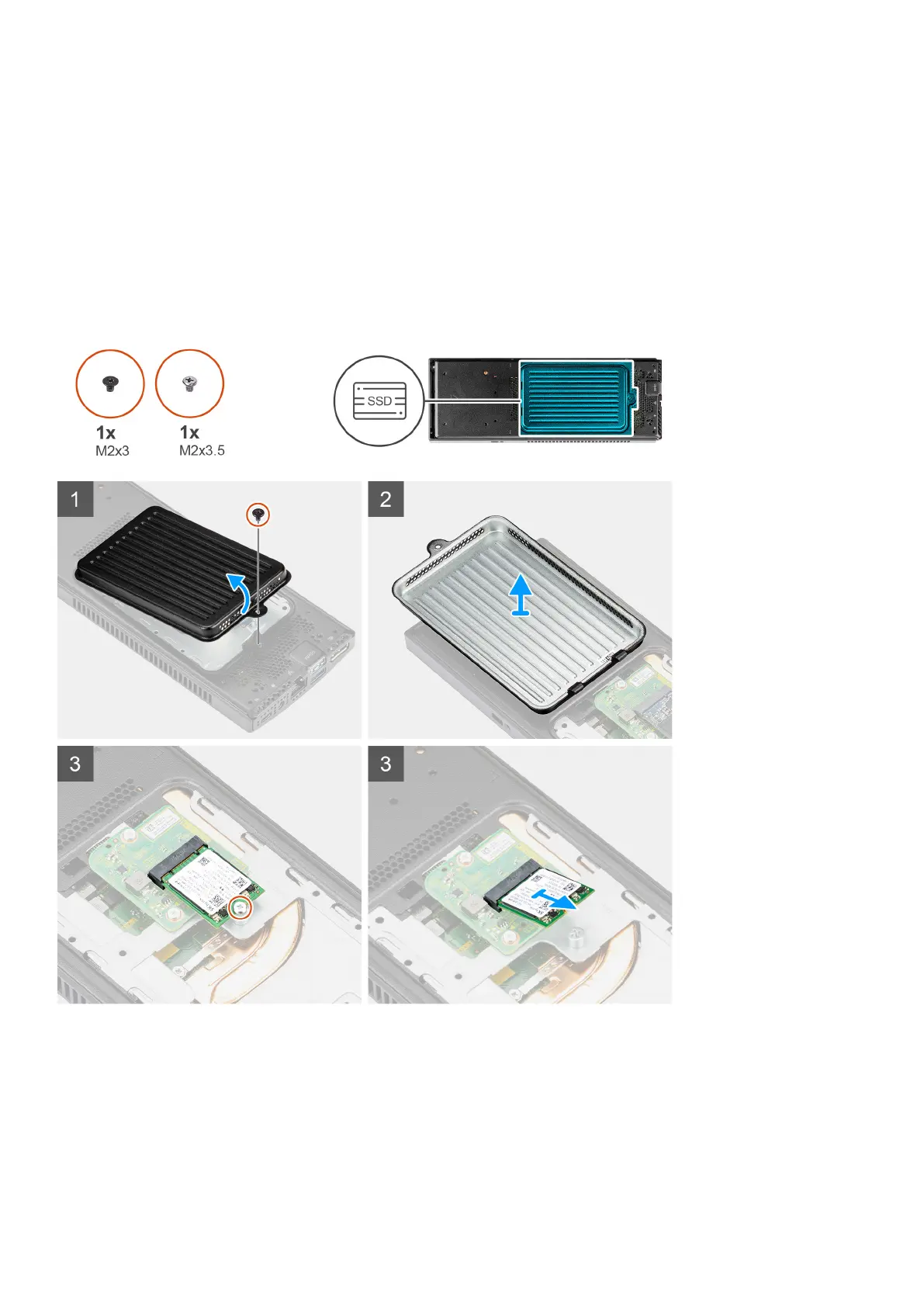

The figure indicates the location of the M.2 2230 solid-state drive and provides a visual representation of the removal
procedure.
Steps
1. Remove the (M2x3) screw that secures the solid-state drive cover to the chassis.
2. Turn the solid-state drive cover and remove it from the chassis to access the M.2 2230 solid-state drive.
3. Remove the (M2x3.5) screw that secures the M.2 2230 solid-state drive to the chassis.
4. Lift and remove the M.2 2230 solid-state drive from the solid-state drive slot on the daughter board.
20
Removing and installing components
