4. Route the coin-cell battery cable through the routing guide.
5. Connect the coin-cell battery cable to the connector on the system board.
Next steps
1. Install the system fan.
2. Install the cover.
3. Follow the procedure in after working on your device.
System board
Removing the system board
Prerequisites
1. Follow the procedure in before working inside your device.
2. Remove the hard-drive assembly.
NOTE: For systems configured with solid-state drive in the hard-drive bay
ā Remove the M.2 2280 solid-state drive/M.2 2230 solid-state drive.
ā Remove the solid-state drive daughter board.
3. Remove the cover.
4. Remove the system fan.
5. Remove the WLAN card.
6. Remove the solid-state drive.
7. Remove the memory module.
About this task

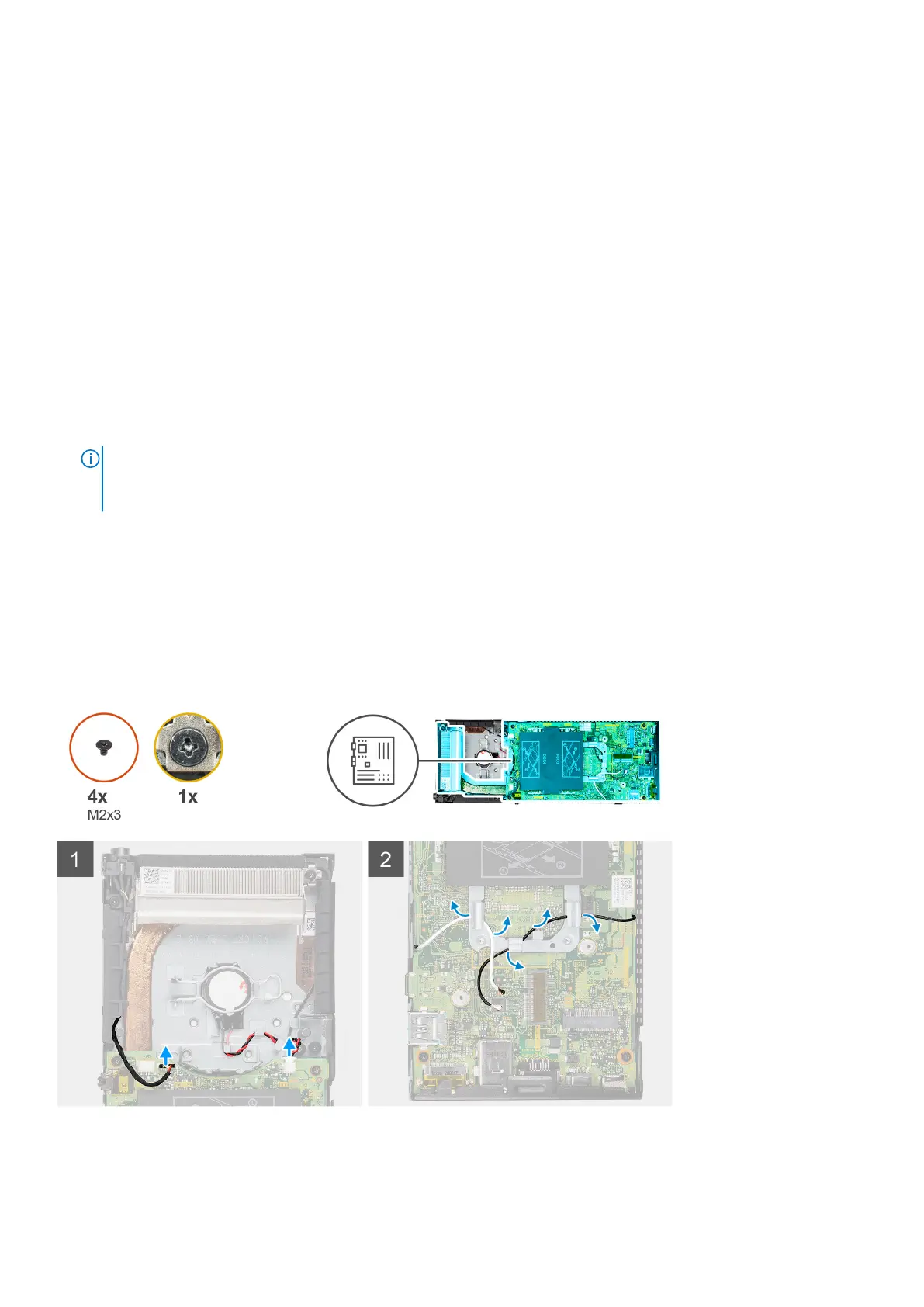

The figure indicates the location of the system board and provides a visual representation of the removal procedure.
42
Removing and installing components
