WLAN card
Removing the WLAN card
Prerequisites
1. Follow the procedure in before working inside your device.
2. Remove the cover.
About this task

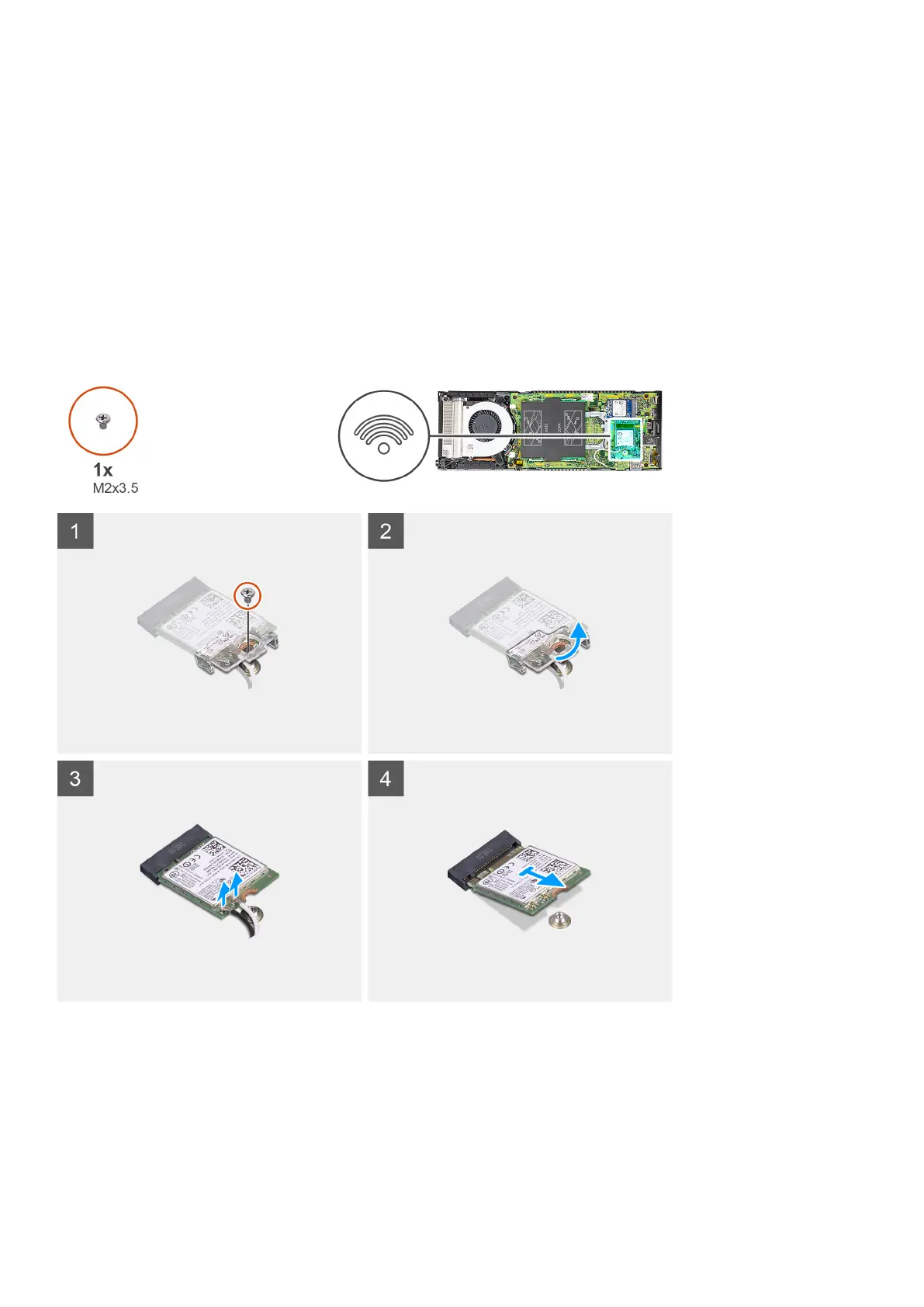

The figure indicates the location of the WLAN card and provides a visual representation of the removal procedure.
Steps
1. Remove the (M2x3.5) screw that secures the WLAN bracket to the system board.
2. Slide and lift the WLAN bracket.
3. Disconnect the WLAN antenna cables from the WLAN card.
4. Slide and remove the WLAN card from the WLAN connector on the system board.
30
Removing and installing components
