NOTE: Check the adhesive direction before adhering it to the system board.
2. Align the notch on the solid-state drive module with the connector on the system board and slide the solid-state drive at an
angle into the slot.
3. Replace the (M2x3.5) screw to secure the solid-state drive module to the system board.
Next steps
1. Install the cover.
2. Follow the procedure in after working on your device.
eMMC Storage module
For computers with eMMC module in M.2 2230 SSD slot.
Removing the eMMC storage module
Prerequisites
1. Follow the procedure in before working inside your device.
2. Remove the cover.
About this task

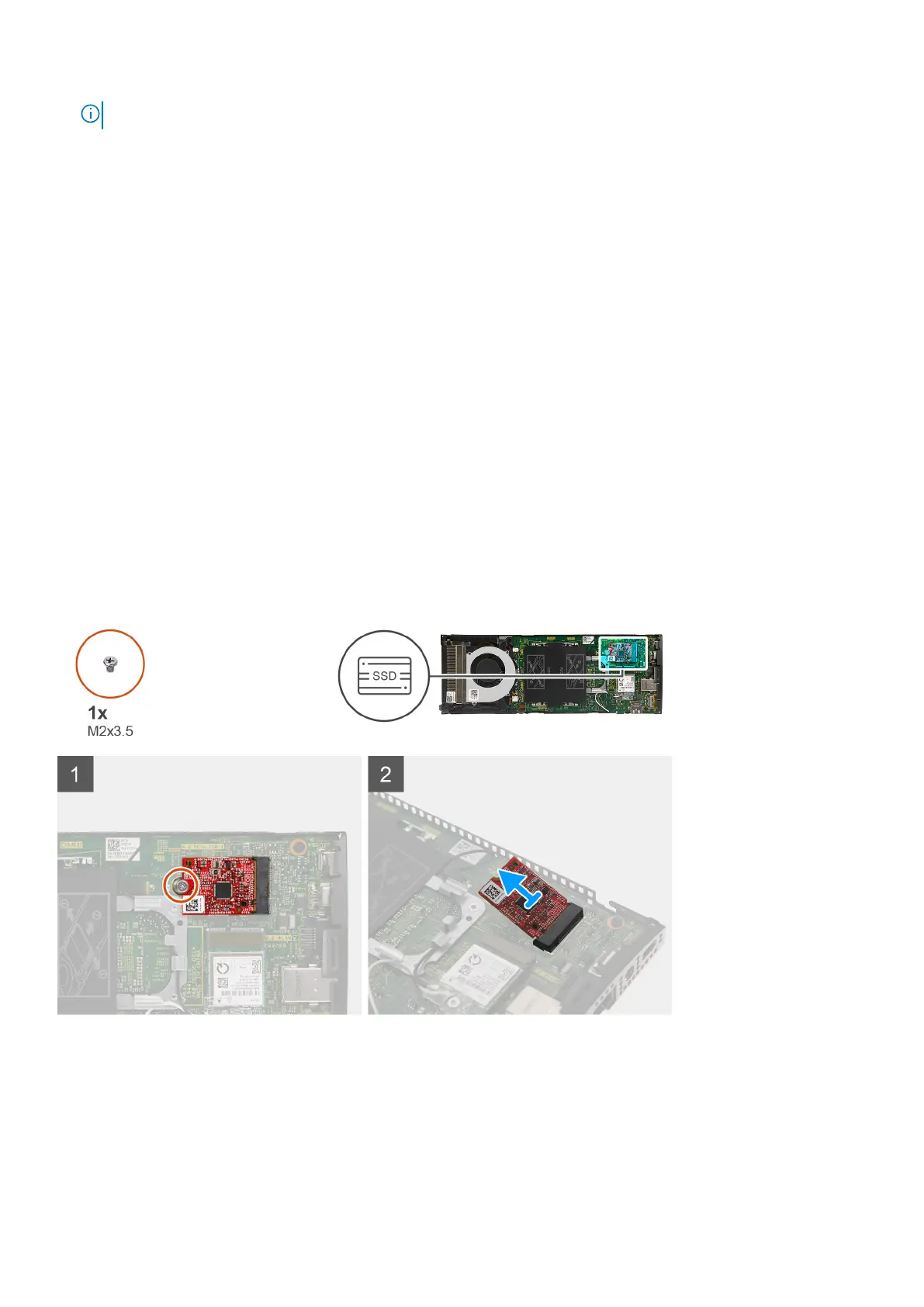

The figure indicates the location of the eMMC storage module and provides a visual representation of the removal procedure.
Steps
1. Remove the (M2x3.5) screw that secures the eMMC storage module to the connector on the system board.
2. Slide the eMMC storage module at an angle out from the slot.
34
Removing and installing components
