Coin-cell battery
Removing the coin-cell battery
Prerequisites
1. Follow the procedure in before working inside your device.
2. Remove the cover.
3. Remove the system fan.
About this task

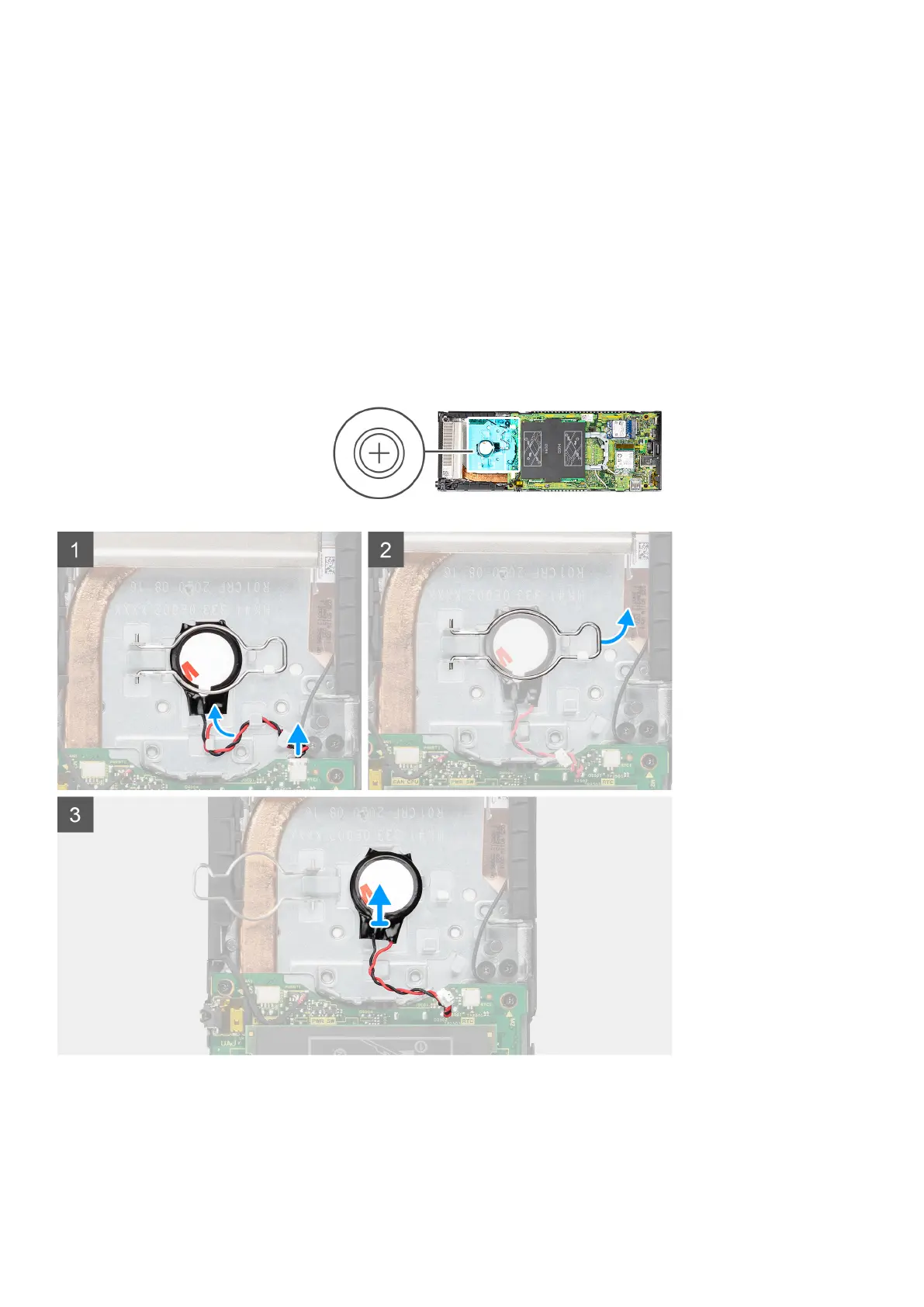

The figure indicates the location of the coin-cell battery and provides a visual representation of the removal procedure.
Steps
1. Disconnect the coin-cell battery cable from the connector on the system board.
2. Unroute the coin-cell battery cable from the routing guide.
40
Removing and installing components
