Steps
1. Remove the (M2x3.5) screw that secures the solid-state drive module to the connector on the system board.
2. Slide the solid-state drive module out from the M.2 slot.
3. Peel the solid-state drive thermal pad from the system board.
Installing the solid-state drive
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

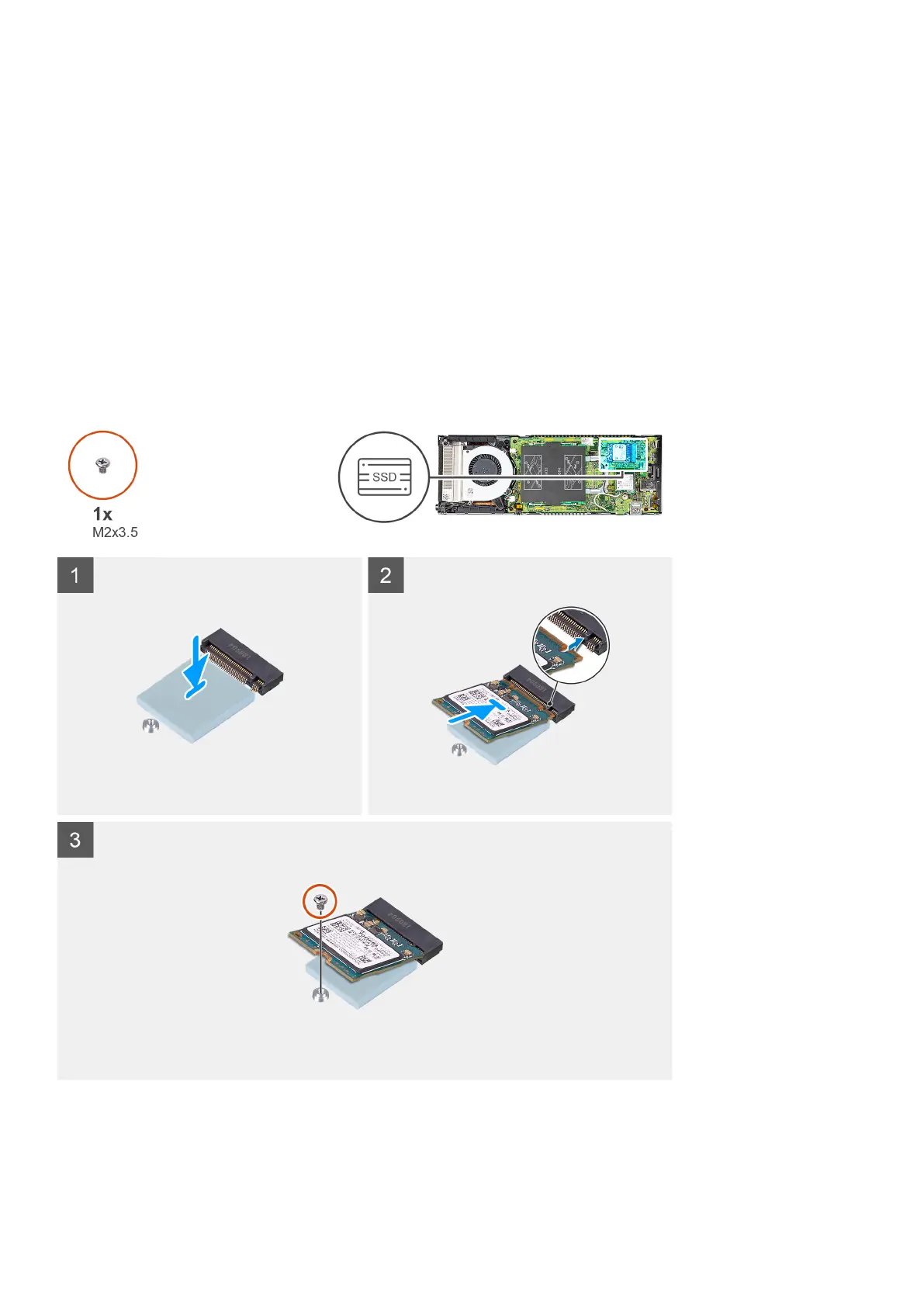

The figure indicates the location of the M.2 2230 solid-state drive and provides a visual representation of the installation
procedure.
Steps
1. Align and adhere the SSD thermal pad in the mark on the system board.
Removing and installing components
33
