Installing the M.2 2230 solid-state drive
For systems with solid-state drive in the hard drive bay will not support hard drive.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

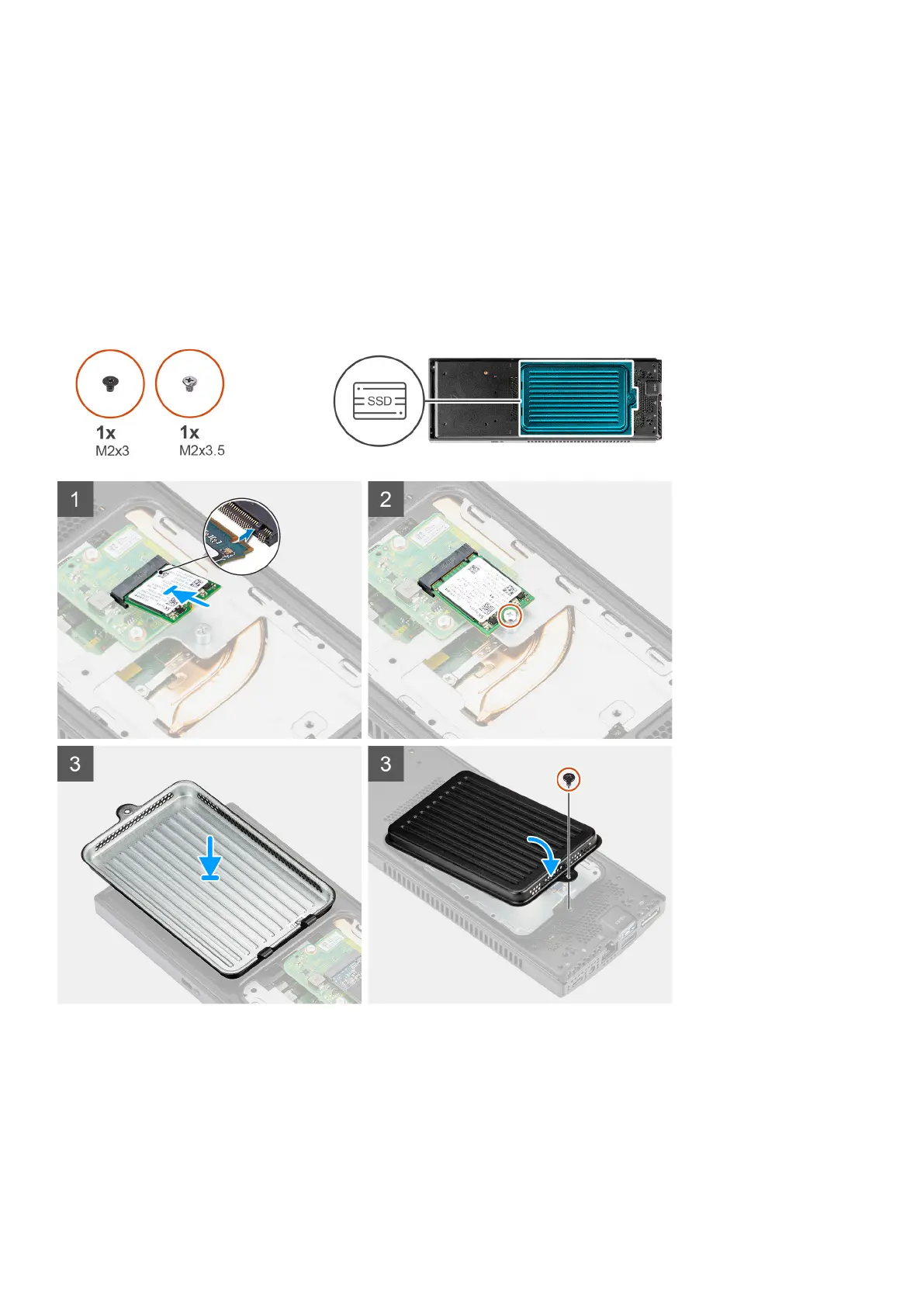

The figure indicates the location of the M.2 2230 solid-state drive and provides a visual representation of the installation
procedure.
Steps
1. Align the notch on the M.2 2230 solid-state drive with the tab on solid-state drive connector and slide the M.2 2230
solid-state drive at an angle into the slot.
2. Replace the (M2x3.5) screw to secure the M.2 2230 solid-state drive to the chassis.
3. Turn the solid-state drive cover and align the tabs on the solid-state cover with the slots on the chassis.
4. Align the screw hole on the solid-state drive cover with the screw hole on the chassis.
5. Replace the (M2x3) screw to secure the solid-state drive cover to the chassis.
