4. Replace the (M2x3.5) screw to secure the WLAN card to the system board.
Next steps
1. Install the cover.
2. Follow the procedure in after working on your device.
Internal solid-state drive
Removing the solid-state drive
Prerequisites
1. Follow the procedure in before working inside your device.
2. Remove the cover.
About this task

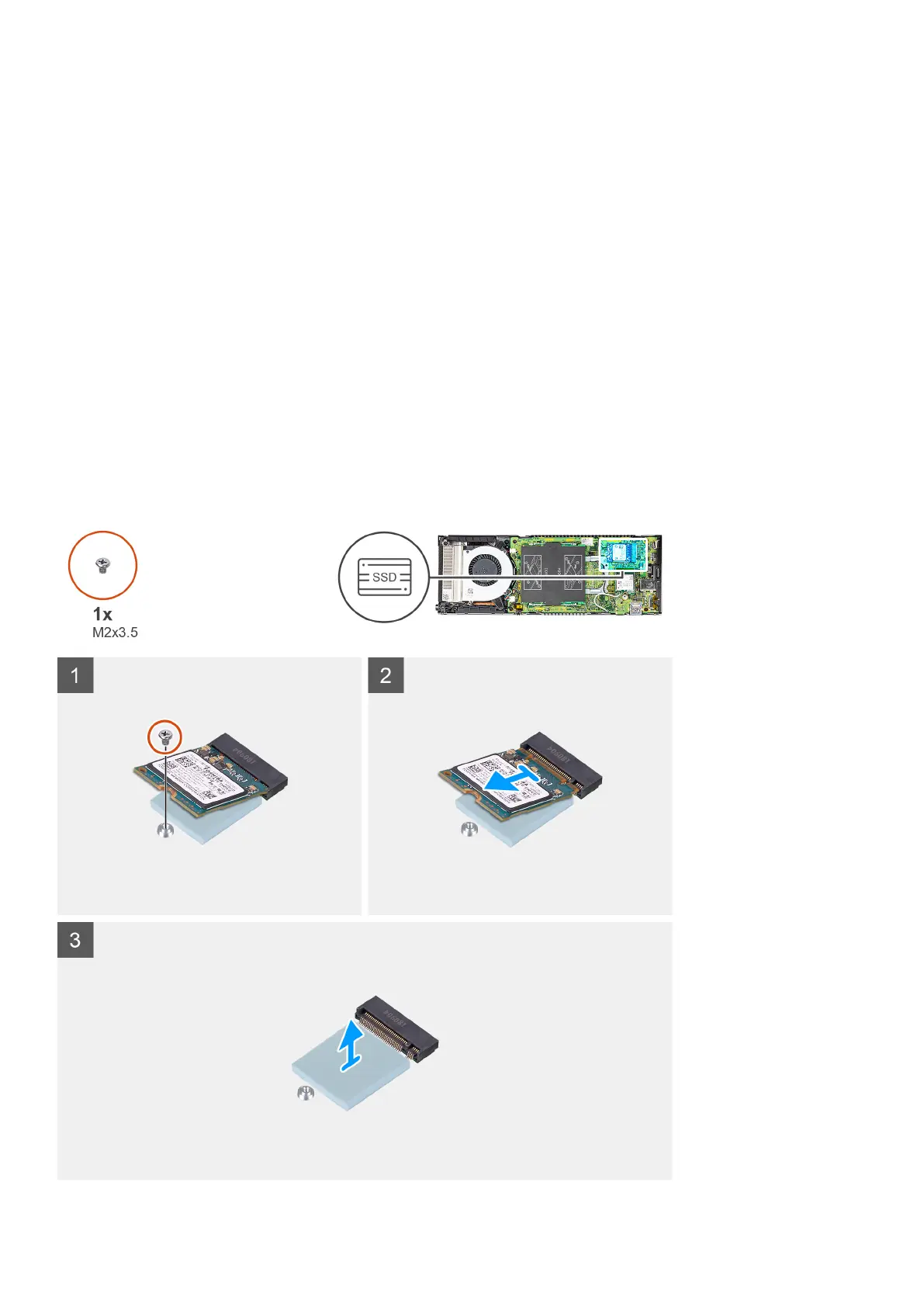

The figure indicates the location of the M.2 2230 solid-state drive and provides a visual representation of the removal
procedure.
32 Removing and installing components
