Installing the eMMC storage module
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

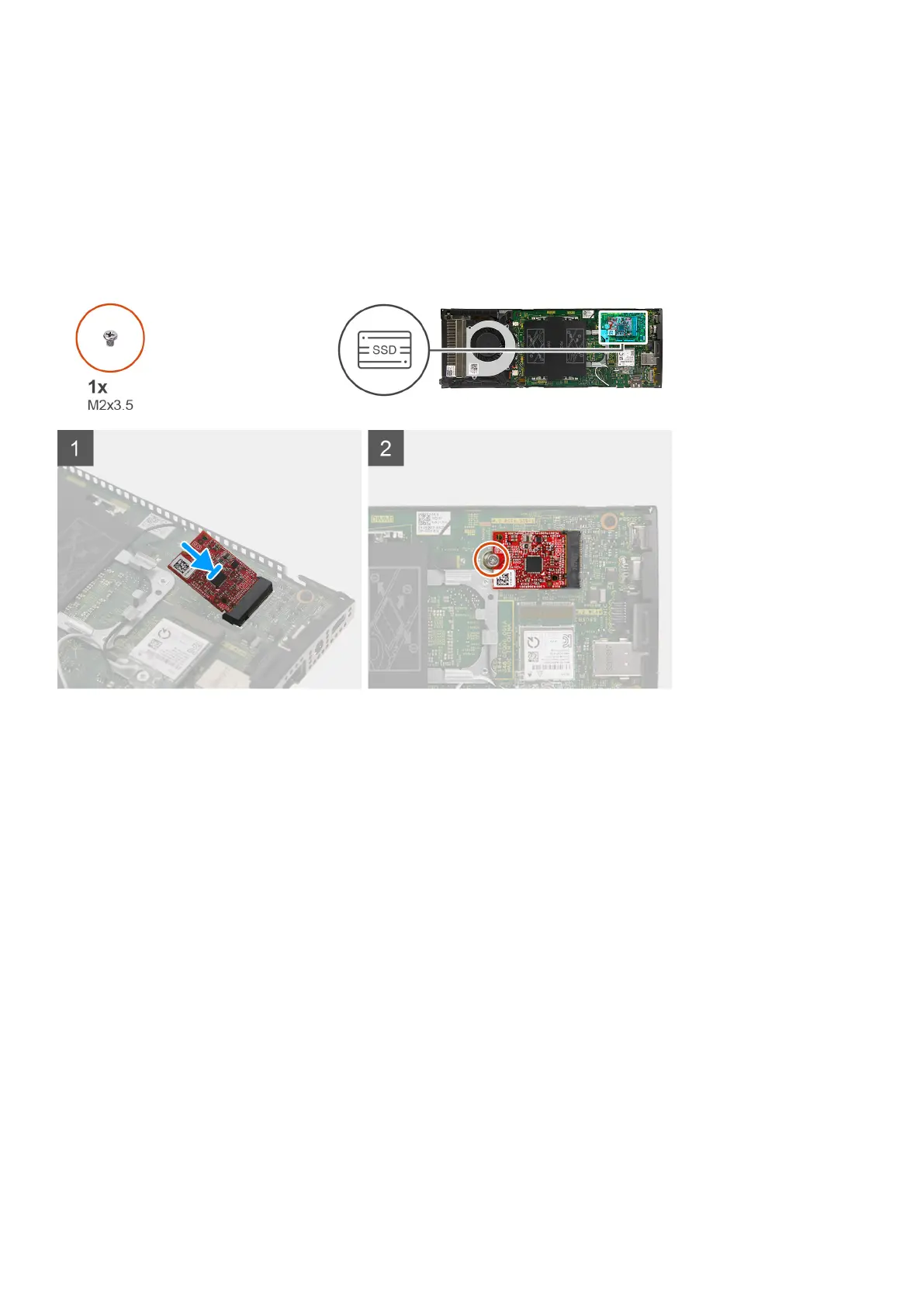

The figure indicates the location of the eMMC storage module and provides a visual representation of the installation procedure.
Steps
1. Align the notch on the eMMC storage module with the connector on the system board and slide the eMMC storage module
at an angle into the slot.
2. Replace the (M2x3.5) screw to secure the eMMC storage module to the system board.
Next steps
1. Install the cover.
2. Follow the procedure in after working on your device.
System fan
Removing the system fan
Prerequisites
1. Follow the procedure in before working inside your device.
2. Remove the cover.
About this task
The figure indicates the location of the system fan and provides a visual representation of the removal procedure.
Removing and installing components
35
