Steps

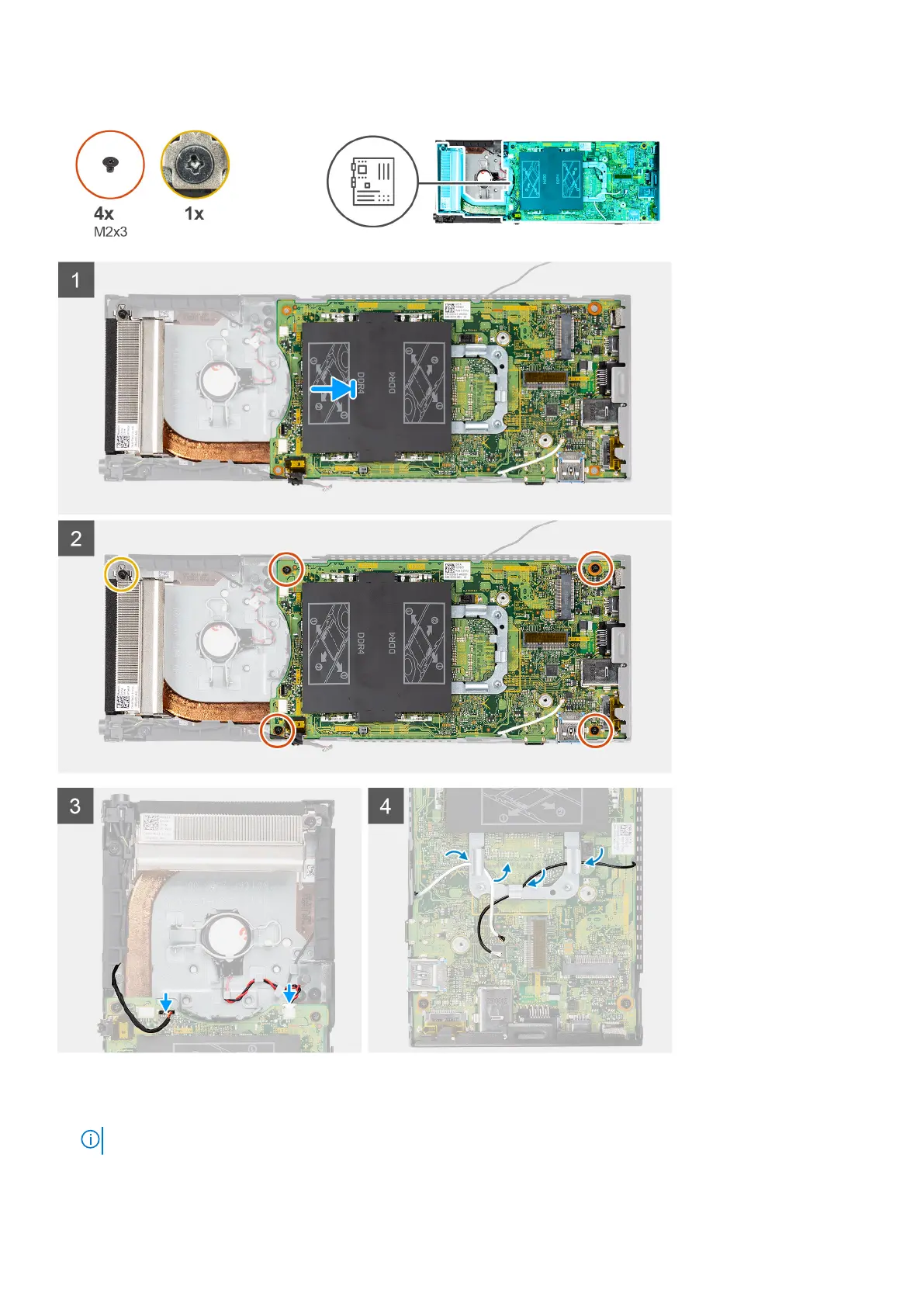

1. Align the connectors on the system board with the connector slots on the chassis.
NOTE: The system board is installed along with the heat-sink connected to it.
2. Gently slide the system board into the chassis.
44
Removing and installing components
