18 | About your monitor
Pin assignments

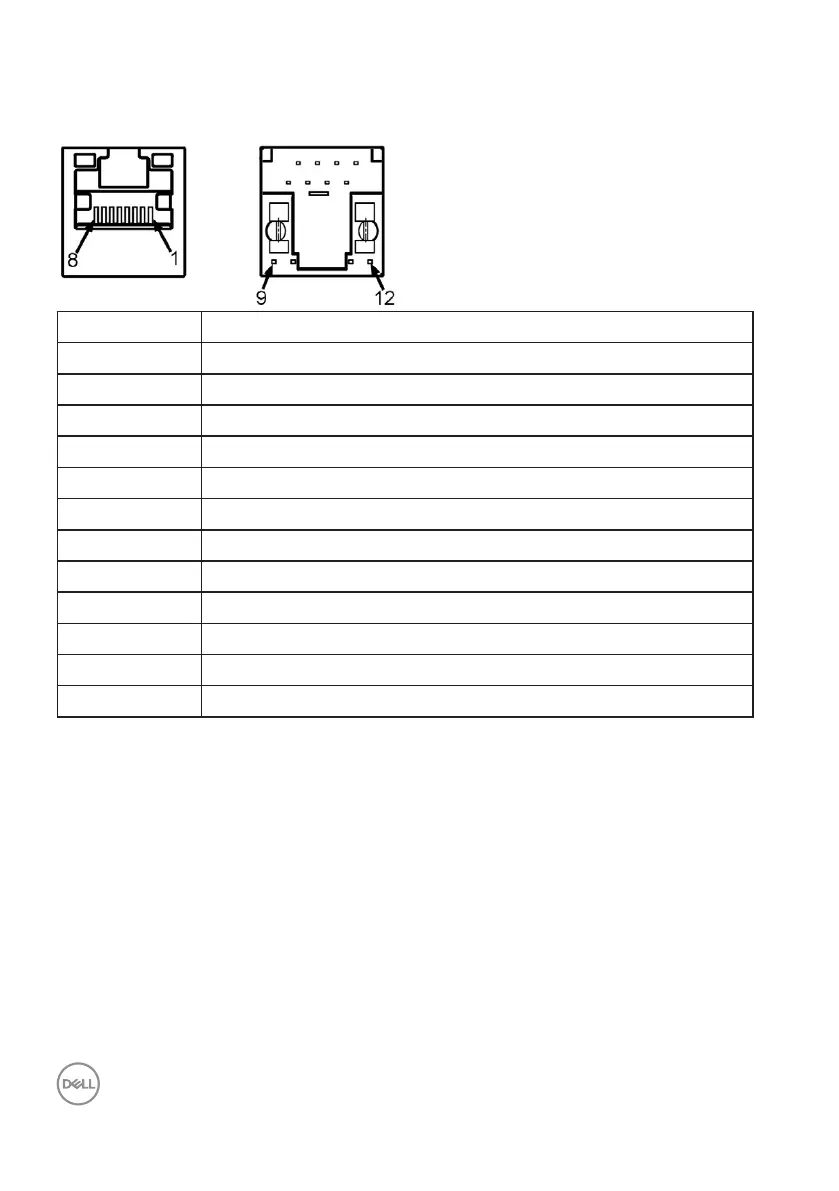

RJ45 connector
Pin number Monitor side of the 12-pin side signal cable
1 MDI_TP
2 MDI_TN
3 CT
4 GND
5 GND
6 CT
7 MDI_RP
8 MDI_RN
9 Yellow LED
10 GND
11 Green LED
12 GND
