Setting up the monitor
Connecting your monitor
WARNING: Before you begin any of the procedures in this section,
follow the Safety instructions.
To connect your monitor to the computer:
1. Turn off your computer.
2. Connect the HDMI/DP/USB cable from your monitor to thecomputer.
3. Switch on your monitor.
4. Select the correct input source at monitor OSD Menu.
Dell Optiplex (Optional) Attaching the Optiplex
Micro VESA Mount(optional purchase)

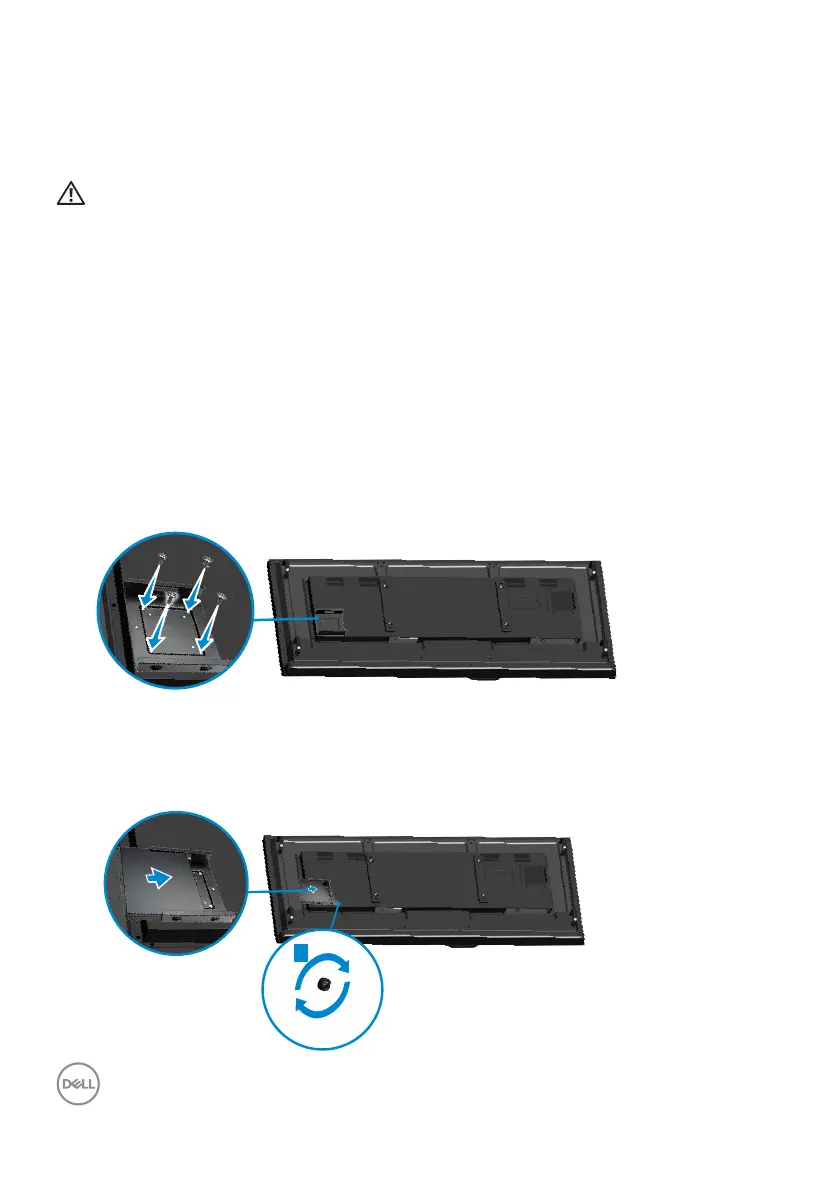

1. Align the dual VESA mount behind the monitor and tighten the screws to
secure the dual VESA mount to the monitor.
2. Perform the following steps as shown in the illustration:
a. Slide the computer into the dual VESA mount. [1]
b. Rotate the screw in clockwise direction to secure the computer to the dual
VESA mount. [2]
2
1
1
