76 Removing and Installing Parts
6
Place the card in the connector and press down firmly. Ensure that the card is fully seated in the slot.
7
Before you close the card retention door, ensure that:
• The tops of all cards and filler brackets are flush with the alignment bar.
• The notch in the top of the card or filler bracket fits around the alignment guide.

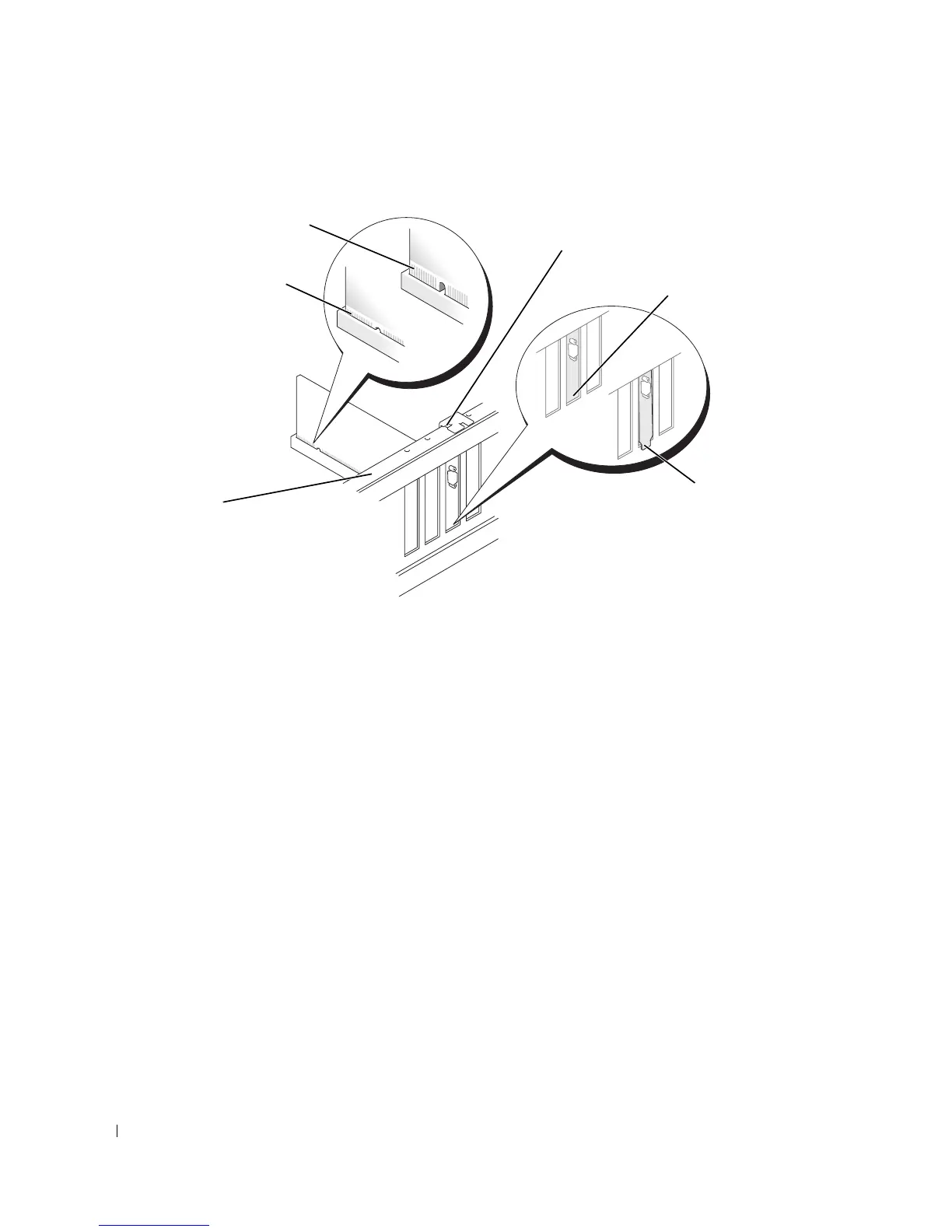

1 alignment bar 2 fully-seated card 3 not fully seated card
4 alignment guide 5 bracket within slot 6 bracket caught outside of slot
2
6
5
4
1
