Dell E30S Series

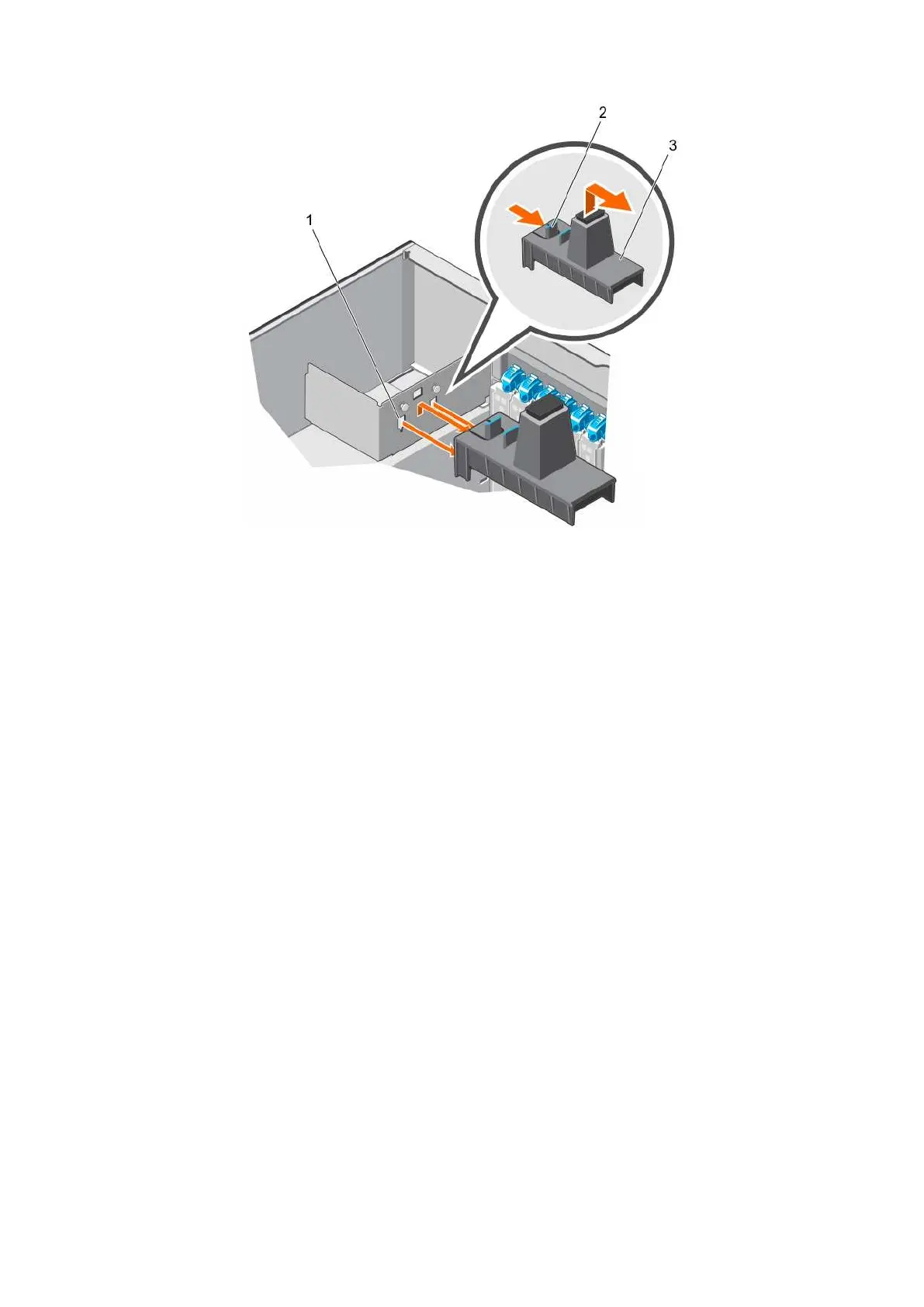

Figure 62. Removing the expansion card holder
a. projection (2)
b. tab
c. expansion card holder
Installing the expansion card holder
Prerequisites
1. Follow the safety guidelines listed in Safety instructions.
2. Follow the procedure listed in Before working inside your system.
Steps
Align the expansion card holder with the projections on the chassis and push it down until firmly seated.
122 Installing and removing system components
