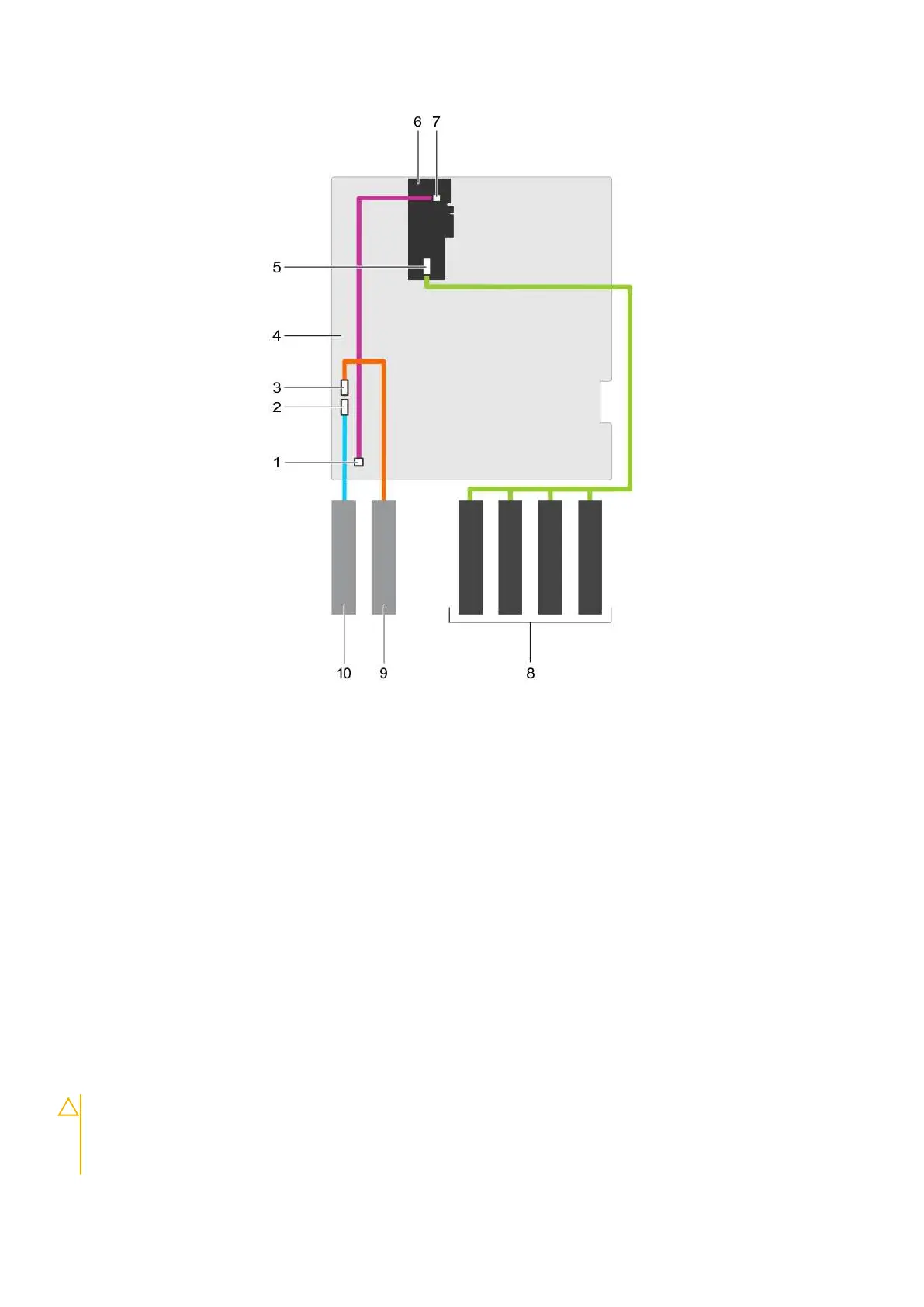

Figure 44. Cabling—Cabled hard-drives with a PERC card
1. front-panel HDD LED controller connector on the system
board
2. SATA optical drive connector on system board
3. SATA tape drive connector on system board 4. system board
5. SAS connector on PERC card 6. PERC card
7. front-panel HDD LED controller connector on the PERC
card
8. hard drives
9. tape drive 10. optical drive
Next steps
1. Follow the procedure listed in After working inside your system.
2. Install the internal drive bay into the chassis.
3. If disconnected, reconnect the power and data cable(s) to the remaining drive(s) in the internal drive bay.
Installing a cabled hard drive
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only perform
troubleshooting and simple repairs as authorized in your product documentation, or as directed by the online or
telephone service and support team. Damage due to servicing that is not authorized by Dell is not covered by
your warranty. Read and follow the safety instructions that are shipped with your product.
98 Installing and removing system components
