Back panel features

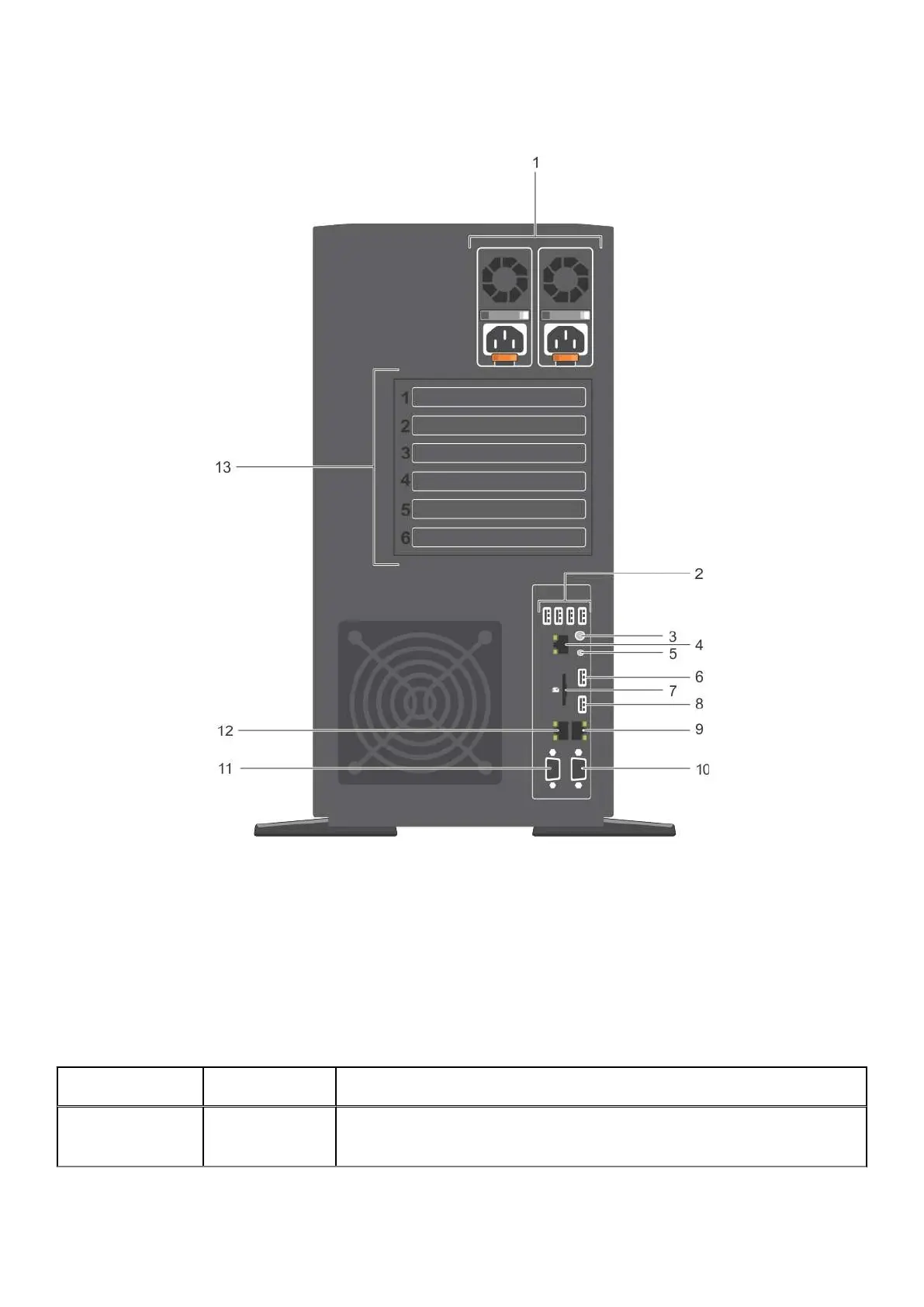

Figure 7. Back panel features
1. Power supplies (PSU1 and PSU2) 2. USB connectors (4)
3. System identification button 4. iDRAC port (optional)
5. System identification connector 6. USB port
7. vFlash media card slot (optional) 8. USB port
9. NIC port 10. Video connector
11. Serial connector 12. NIC port
13. PCIe expansion card slots (6)
Table 7. Back panel Features
Indicator, button,
or connector
Icon Description
Power supplies
(PSU1 and PSU2)
Redundant power
supply
Up to two 495 W, 750 W, or 1100 W redundant AC power
supplies.
