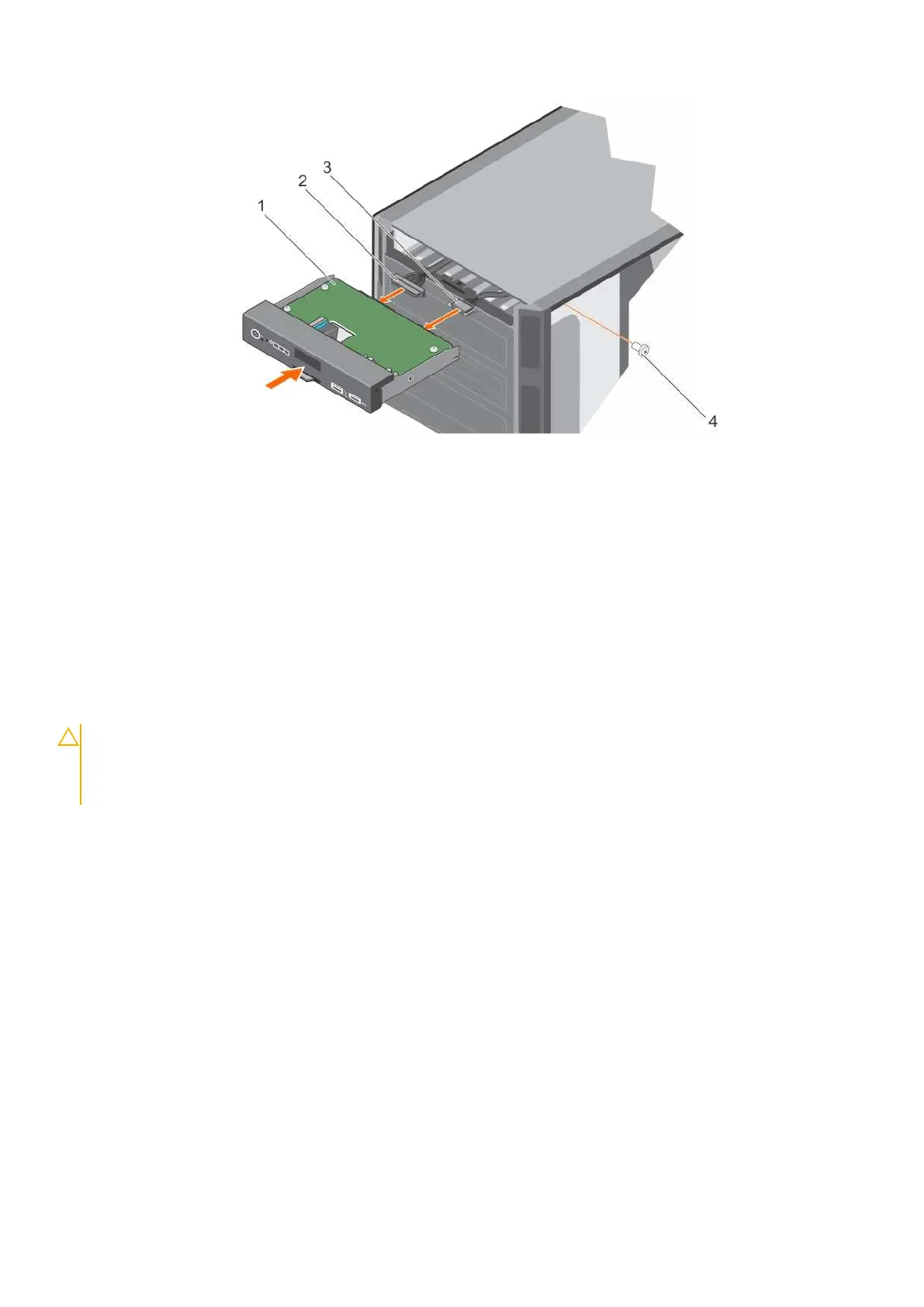

Figure 97. installing the control panel assembly
1. control panel 2. control panel cable
3. control panel USB cable 4. screw
Next steps
1. Install the optical drive and tape drives.
2. Follow the procedure listed in the After working inside your system section.
Removing the control panel assembly cover
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only perform
troubleshooting and simple repairs as authorized in your product documentation, or as directed by the online or
telephone service and support team. Damage due to servicing that is not authorized by Dell is not covered by
your warranty. Read and follow the safety instructions that came with the product.
1. Follow the safety guidelines listed in the Safety instructions section.
2. Follow the procedure listed in the Before working inside your system section.
3. Remove the control panel assembly.
Steps
1. Unhook the tab adjacent to the power button.
2. Unhook the tab on the bottom of the control panel assembly cover.
3. Pull the control panel assembly cover to detach it from the control panel.
156 Installing and removing system components
