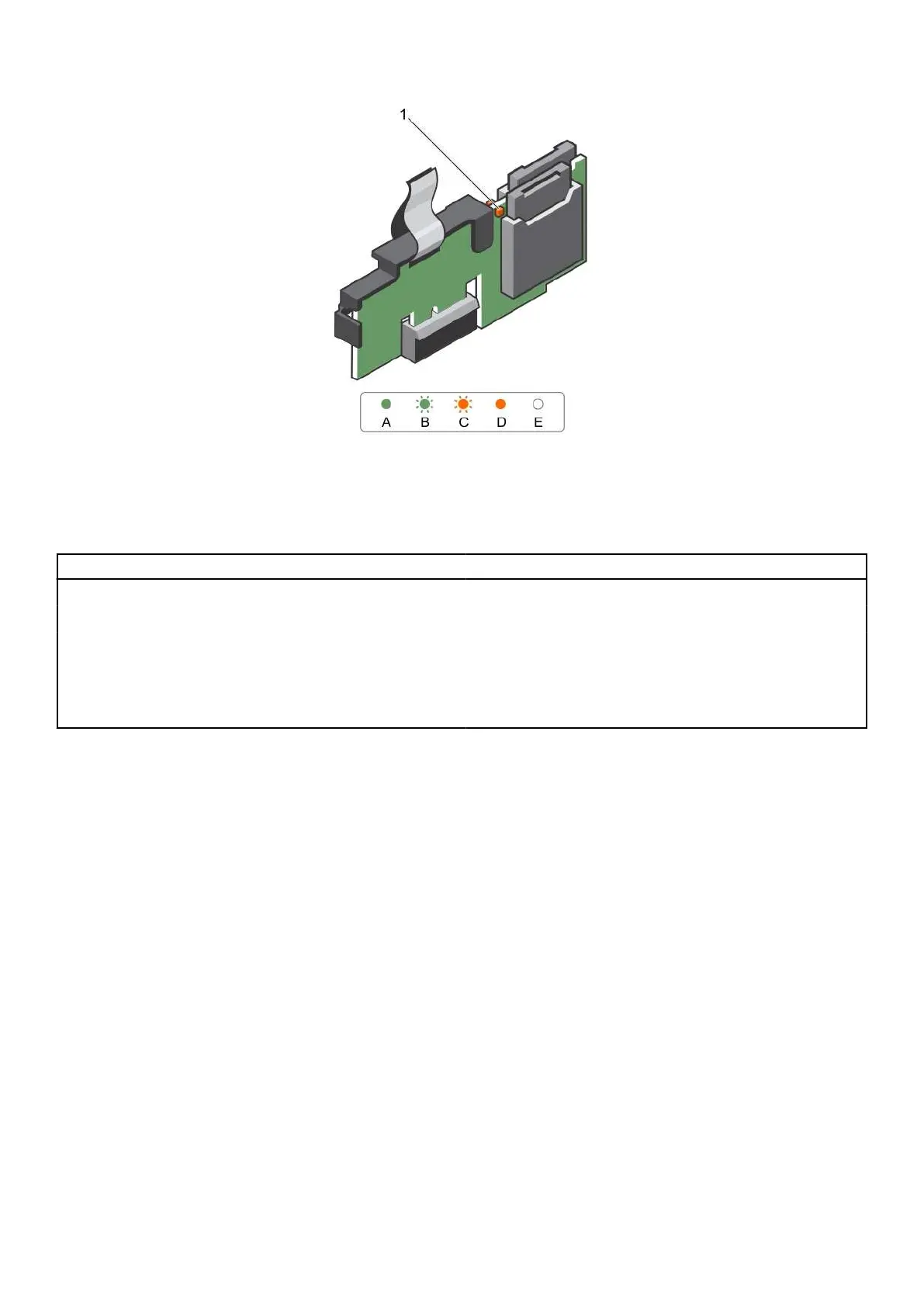

Figure 12. Internal dual SD module (IDSDM)
1. LED status indicator (2)
The following table describes the IDSDM indicator codes:
Table 13. IDSDM indicator codes
Convention IDSDM indicator code Description
A Green Indicates that the card is online.
B Flashing green Indicates rebuild or activity.
C Flashing amber Indicates card mismatch or that the card has failed.
D Amber Indicates that the card is offline, has failed, or is write-
protected.
E Not lit Indicates that the card is missing or is booting.
Locating service tag of your system
Your system is identified by a unique Express Service Code and Service Tag number. The Express Service Code is and Service
Tag are found on the front of the system by pulling out the information tag. Alternatively, the information may be on a sticker on
the chassis of the system. This information is used by Dell to route support calls to the appropriate personnel.
26 Dell PowerEdge T430 system overview
