NOTE: Temporarily label each SD card with its corresponding slot number before removal. Re-install the SD card(s) into
the corresponding slots.
2. Lift the SD card away from the internal dual SD module.

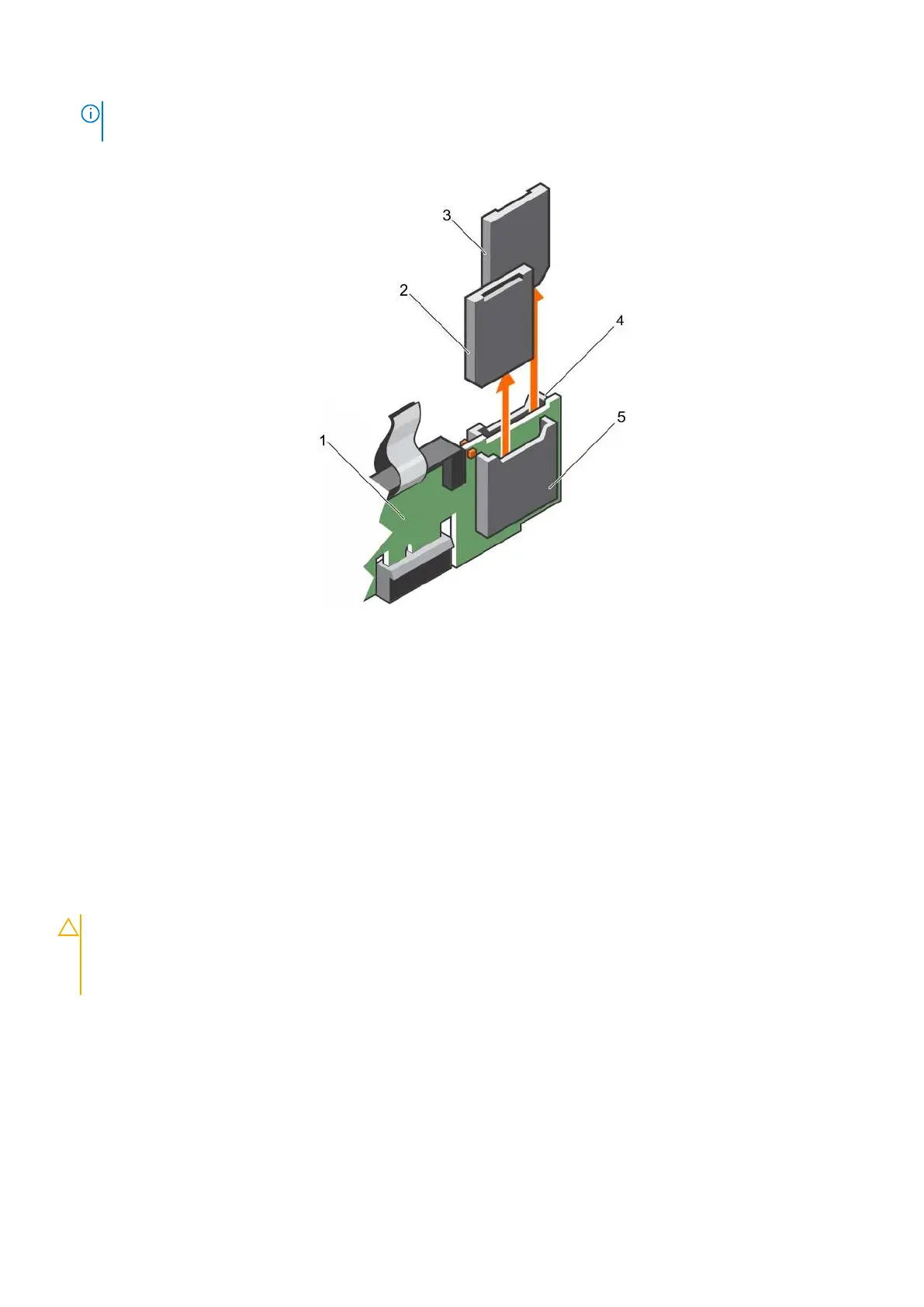

Figure 76. Removing internal SD card.
1. Internal Dual SD module 2. SD card 1
3. SD card 2 4. SD card slot 2
5. SD card slot 1
Next steps
1. Install an internal SD card.
2. Follow the procedure listed in the After working inside your system section.
Installing an (optional) internal SD card
Prerequisites
CAUTION: Many repairs may only be done by a certified service technician. You should only perform
troubleshooting and simple repairs as authorized in your product documentation, or as directed by the online or
telephone service and support team. Damage due to servicing that is not authorized by Dell is not covered by
your warranty. Read and follow the safety instructions that are shipped with your product.
1. Follow the safety guidelines listed in the Safety instructions section.
2. Follow the procedure listed in the Before working inside your system section.
3. Ensure that the Internal SD Card Port option is set to Enabled in System Setup.
4. If installed, remove the cooling shroud.
Steps
1. Locate the SD card connector on the internal dual SD module. Orient the SD card appropriately and insert the contact-pin
end of the card into the slot.
Installing and removing system components 135
