Dell E30S Series User Manual

Front panel
The front panel provides access to the features available on the front of the server, such as the power button, NMI button,
system identification tag, system identification button, and USB and VGA ports. The diagnostic LEDs or the LCD panel is
prominently located on the front panel. The hot swappable hard drives are accessible from the front panel.
Front panel features of 16 x 2.5-inch hot swappable hard drive
chassis

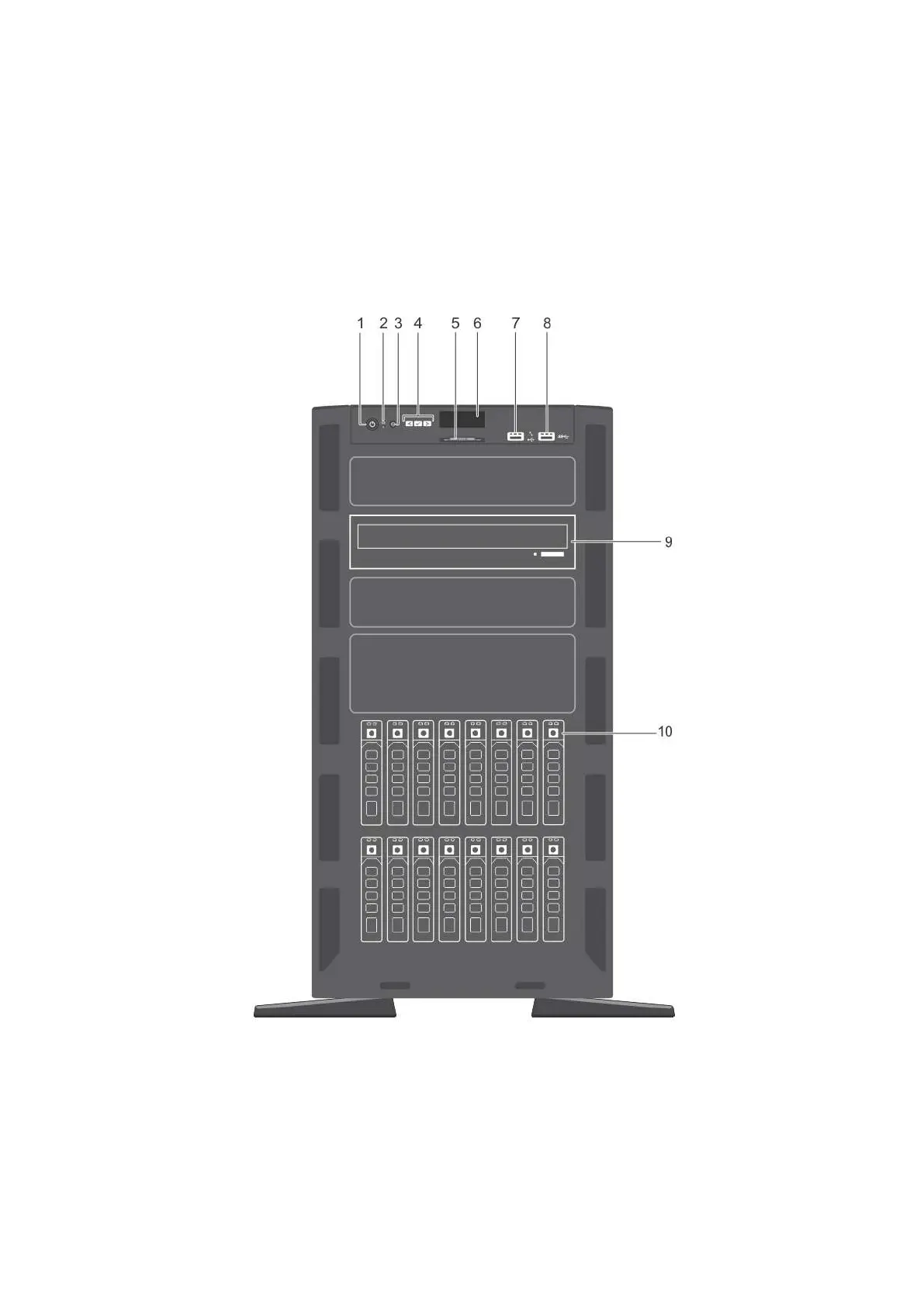

Figure 2. Front panel features a 16 x 2.5-inch hot swappable hard drive chassis
1. Power button 2. NMI button
3. System identification button 4. LCD menu buttons
5. Information tag 6. LCD panel
7. USB management port/iDRAC Direct port 8. USB port
9. Optical drive or tape-drive bay 10. Physical drives
