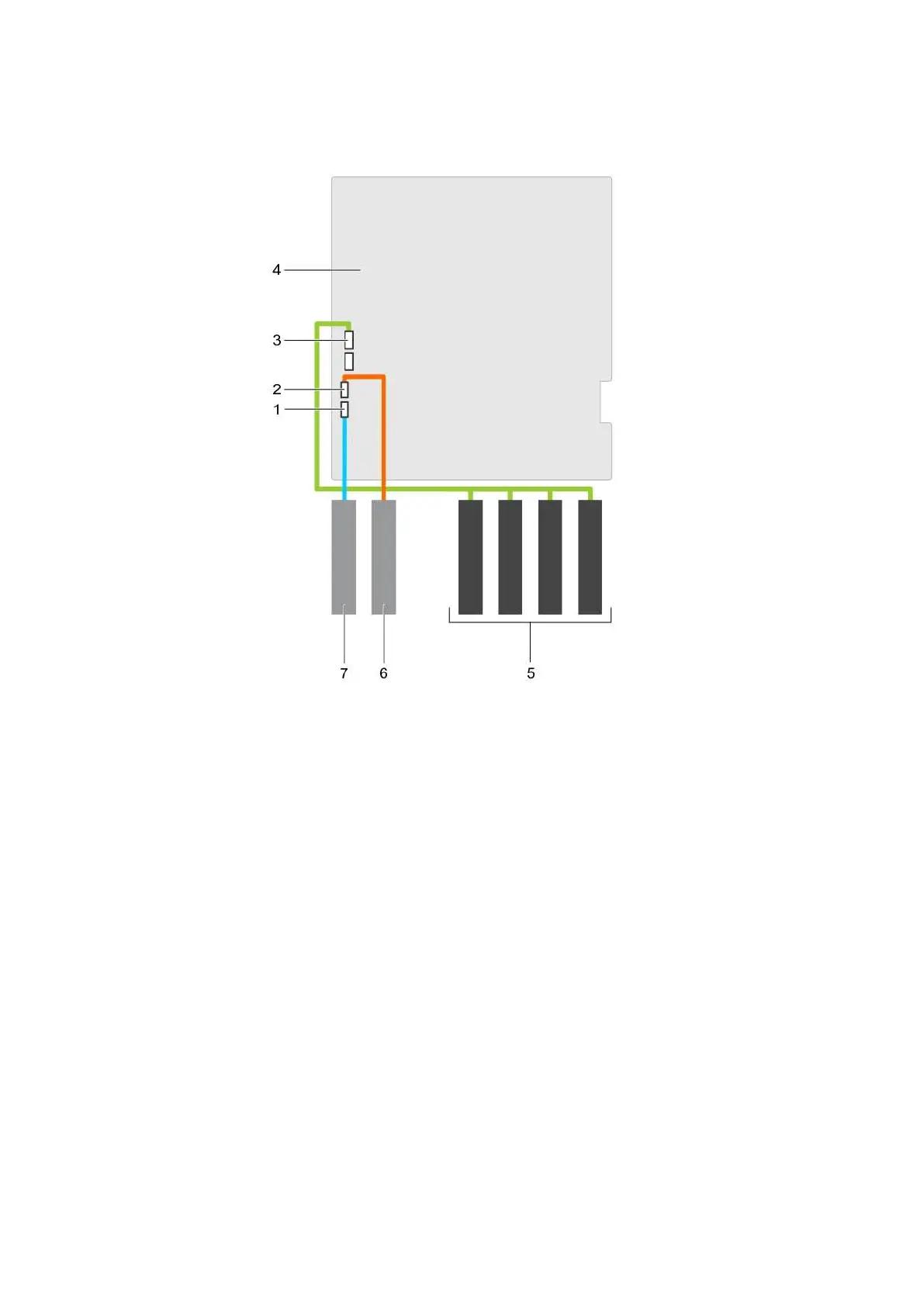

Figure 43. Cabling—Cabled hard-drives
1. SATA optical drive connector on system board 2. SATA tape drive connector on system board
3. SATA A connector on system board 4. system board
5. hard drives 6. tape drive
7. optical drive
Installing and removing system components 97
