2. Follow the procedure listed in the Before working inside your system section.
3. Remove the cooling shroud.
4. If installed, remove the expansion card riser.
Steps
1. Locate the battery socket. For more information, see the Jumpers and connectors section.
CAUTION: To avoid damage to the battery connector, you must firmly support the connector while installing
or removing a battery.
2. Place your finger between the securing tabs at the negative side of the battery connector, and lift the battery out of the
socket.

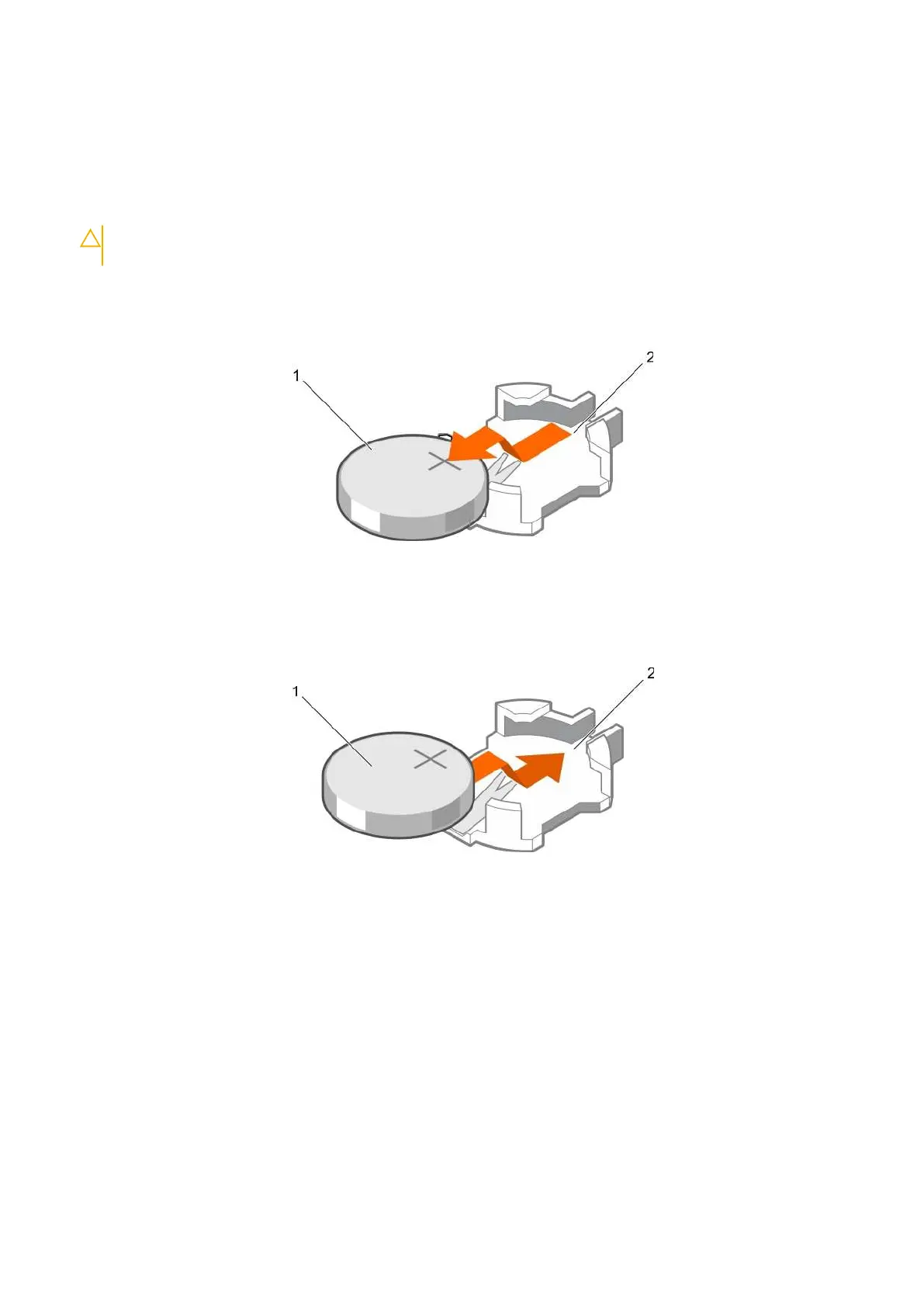

Figure 93. Removing the system battery
a. system battery
b. system battery slot
3. To install a new system battery, hold the battery with the "+" facing up and slide it under the securing tabs.
4. Press the battery into the connector until it snaps into place.
Figure 94. Installing the system battery
a. system battery
b. system battery slot
Next steps
1. Install the cooling shroud.
2. If removed, install the expansion card riser.
3. Follow the procedure listed in the After working inside your system section.
4. While booting, press F2 to enter System Setup and ensure the battery is operating properly.
5. Enter the correct time and date in the System Setup Time and Date fields.
6. Exit System Setup.
Installing and removing system components 153
