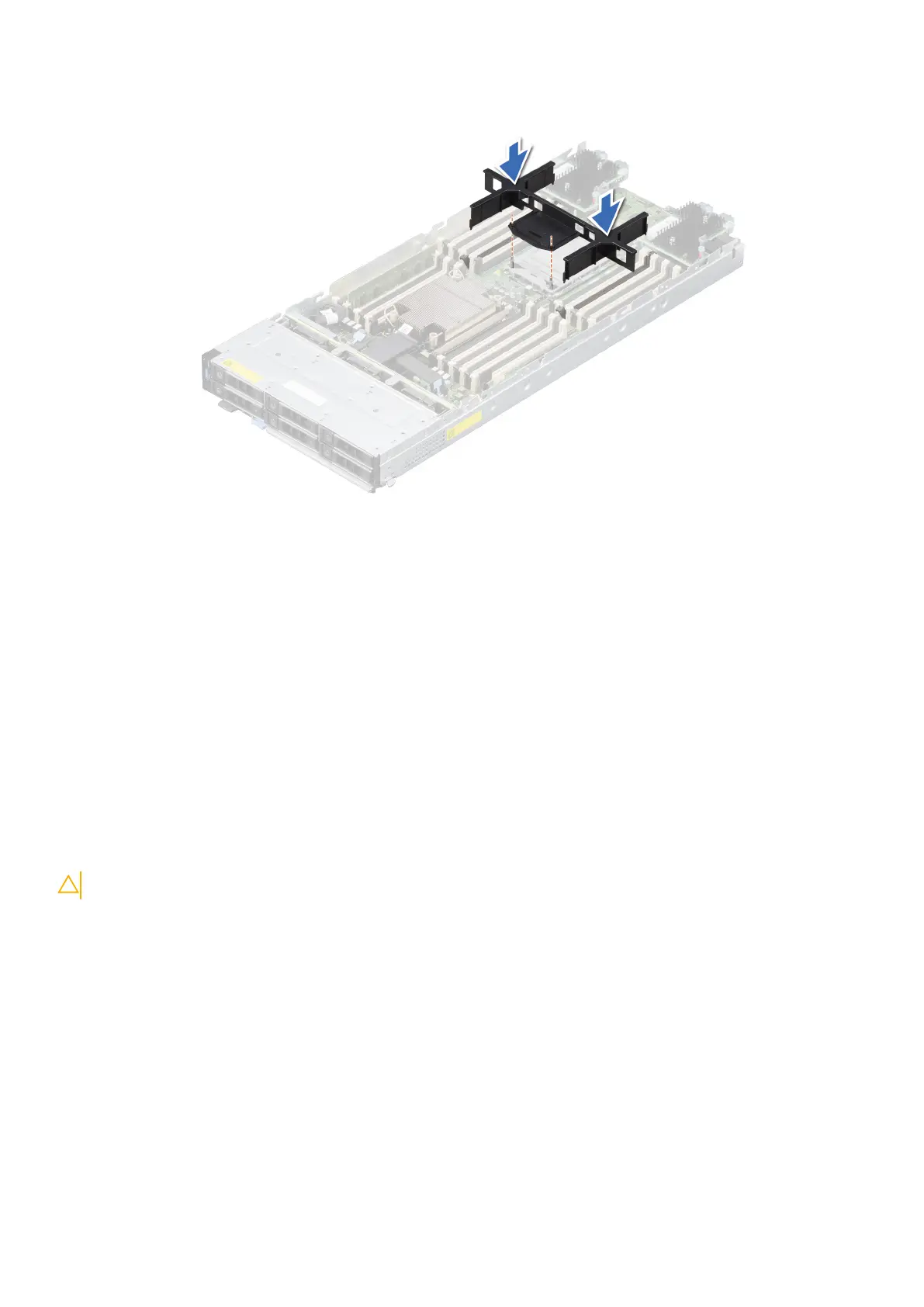

Figure 20. Installing the processor and memory module blank
2. Align the edges of the processor and memory module blank with the alignment key of the memory module socket, and insert
the blank in the socket.
3. Press the blank with your thumbs until the ejectors firmly click into place.
Next steps
1. Follow the procedure listed in After working inside your system.
Drives
Removing a drive blank
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
CAUTION: To maintain proper system cooling, drive blanks must be installed in all empty drive slots.
Steps
Press the release button, and slide the drive blank out of the drive slot.
Installing and removing system components
31
