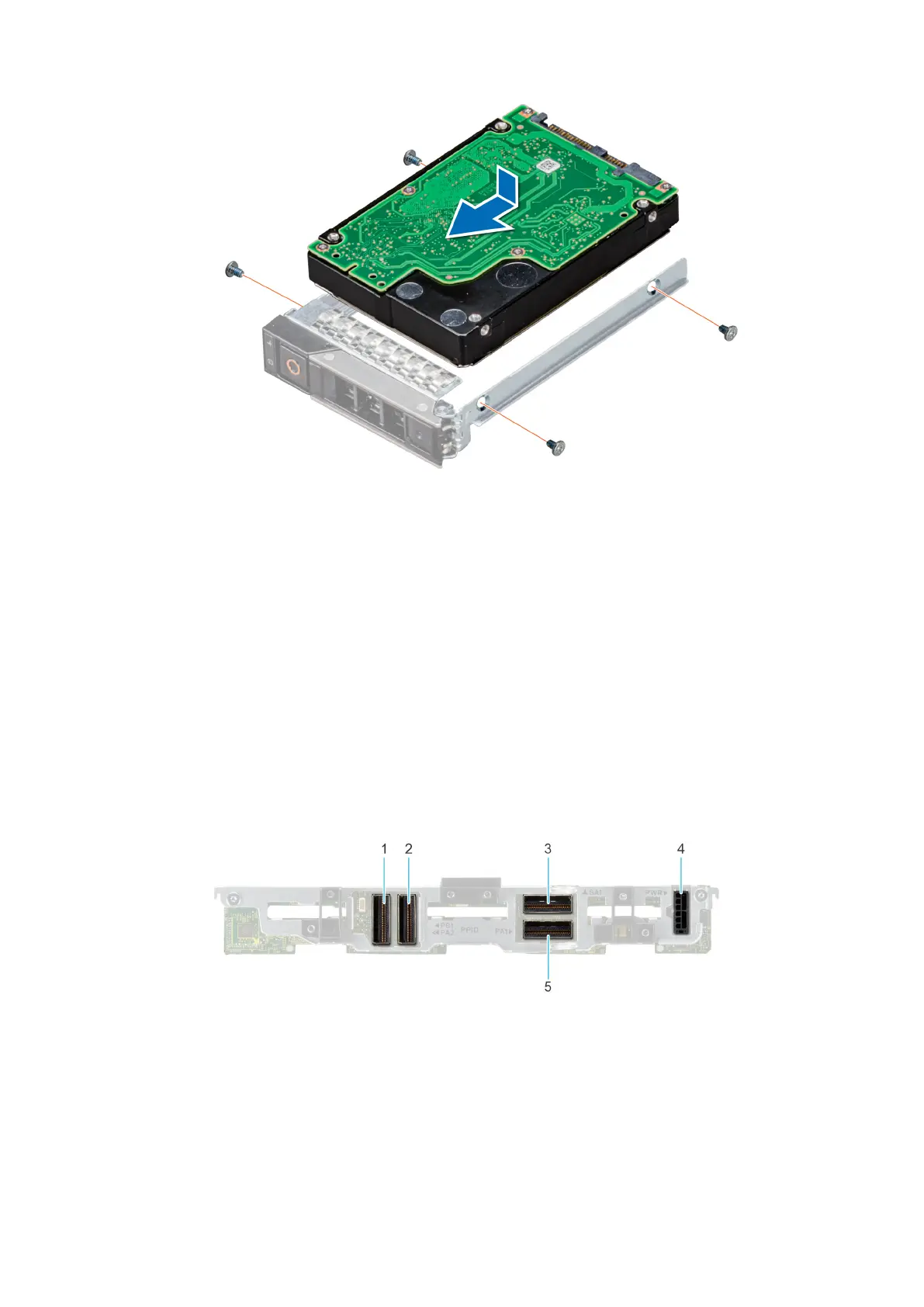

Figure 26. Installing a drive into drive carrier
Next steps
1. Install the drive carrier.
Drive backplane
Drive backplane details
Depending on the configuration, your system supports:
● 2.5-inch (x6) Universal backplane
● 2.5-inch (x6) SAS/SATA backplane
● 2.5-inch (x4) Universal backplane
Figure 27. 6 x 2.5-inch universal backplane
1. BP_DST_PA2 (PCIe cable connector)
2. BP_DST_PB1 (PCIe cable connector)
3. BP_DST_SA1 (SAS/SATA cable connector)
4. BP_PWR_1 (Power cable connector)
5. BP_DST_PA1 (PCIe cable connector )
