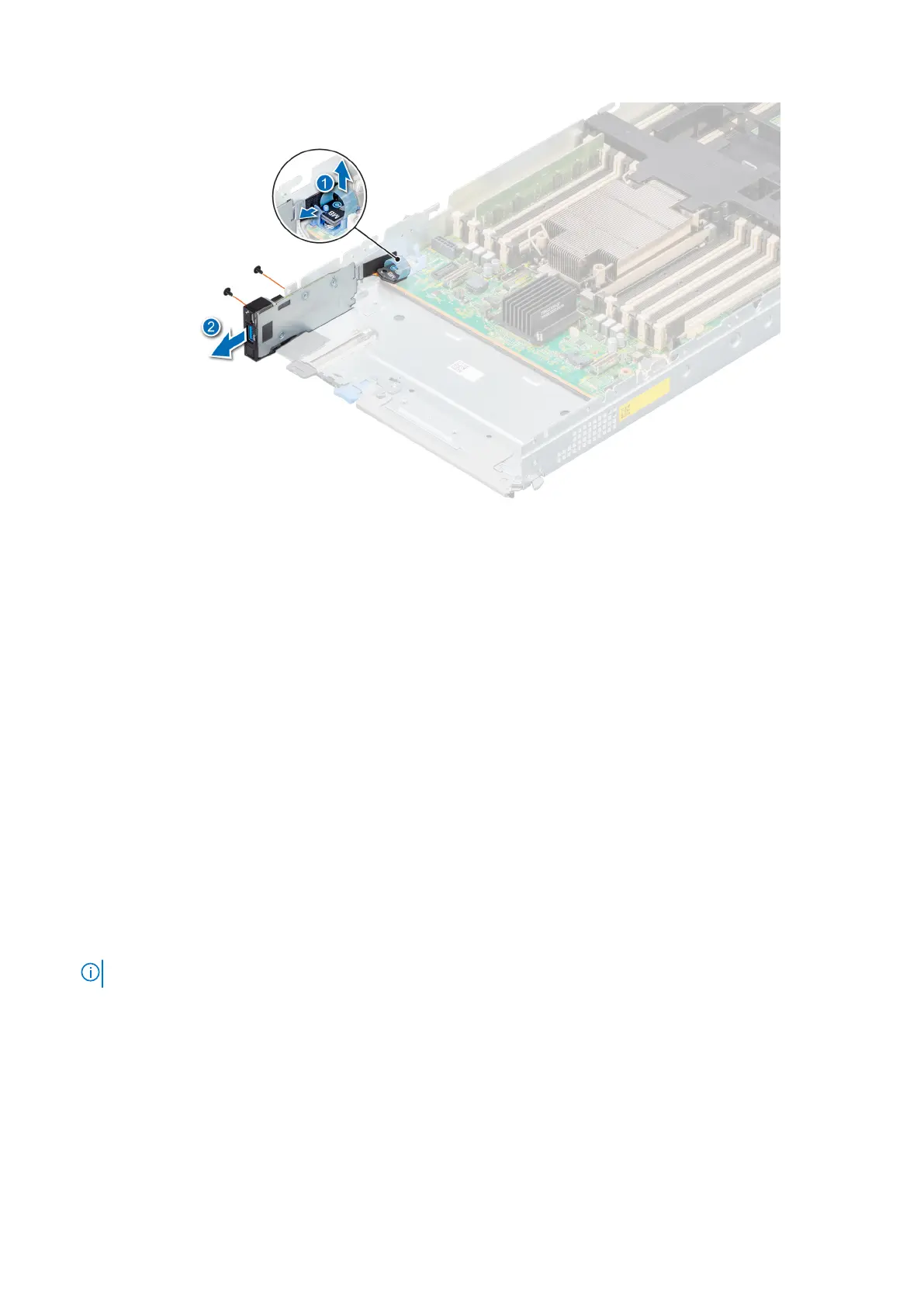

Figure 45. Removing the control panel
Next steps
1. Replace the control panel.
Installing the control panel
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove all the drives.
4. Remove the drive cage.
Steps
1. Align and insert the control panel in the slot on the system.
2. Connect the control panel cable to the connector on the system board.
3. Using a Phillips #1 screwdriver, tighten the screws that secure the control panel to the system.
NOTE: The numbers on the image do not depict the exact steps. The numbers are for representation of sequence.
