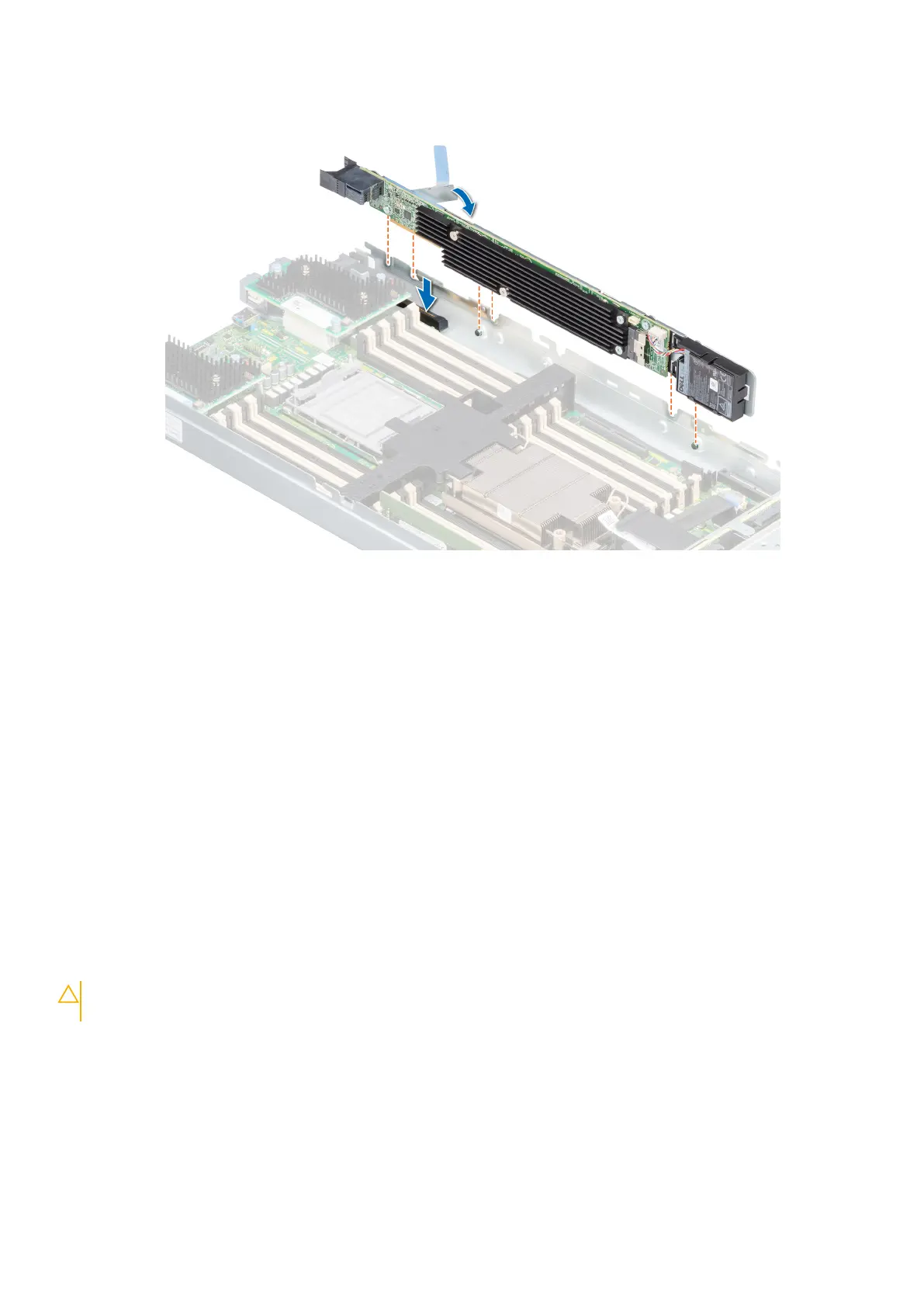

Figure 67. Installing the Jumbo PERC card (H745P MX)
Next steps
1. Connect the cable on the Jumbo PERC card.
2. Follow the procedure listed in the After working inside your system.
Optional IDSDM module
Removing the IDSDM module
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
3. Remove the air shroud.
Steps
Holding the blue tag, lift the IDSDM card out of the system .
CAUTION:
To prevent damage to the IDSDM card, you must not tilt the card while lifting it from the system
board.
Installing and removing system components 73
