Dell EMC PowerEdge MX750c - Installing the M.2 BOSS Card

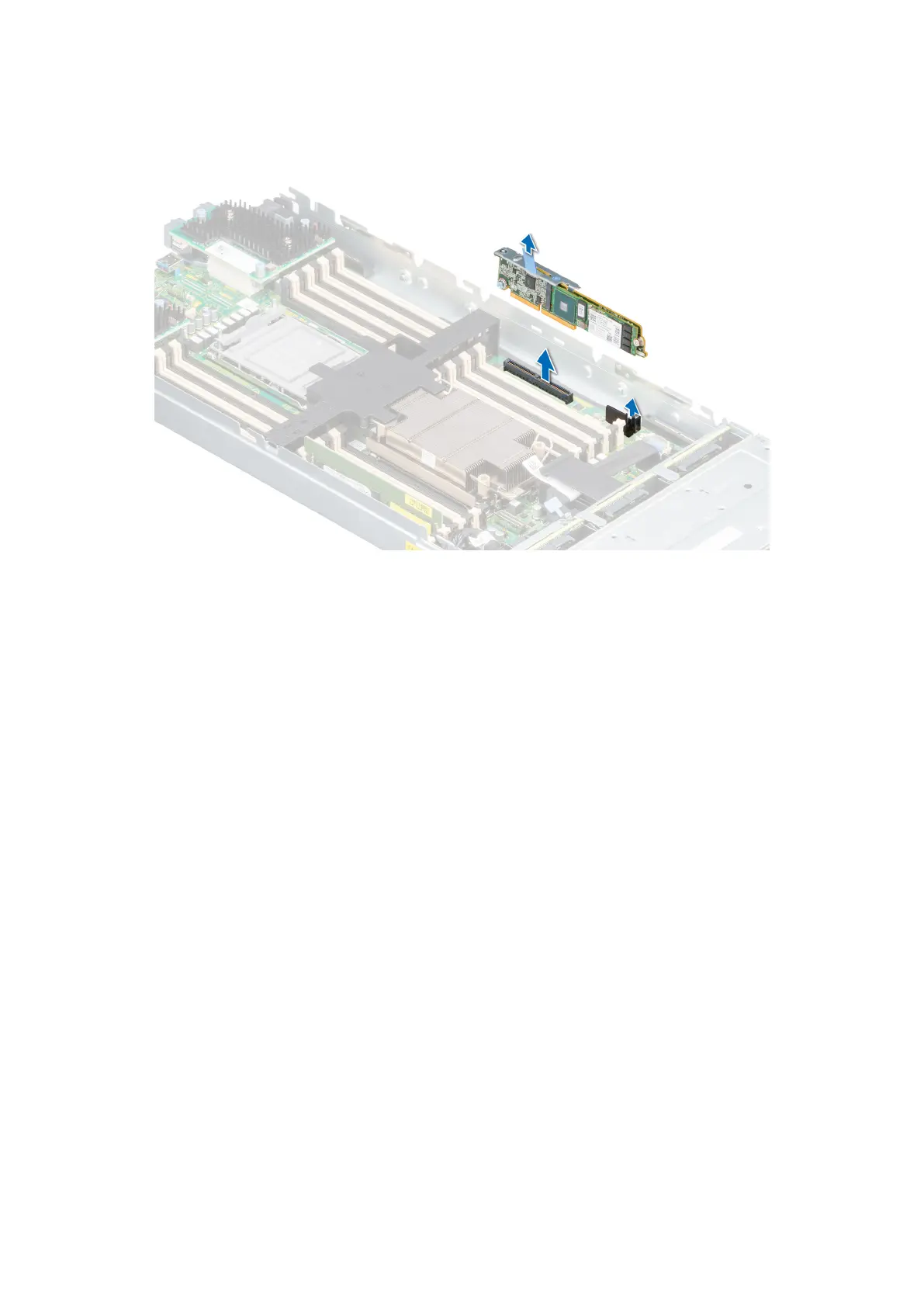

Figure 72. Removing the M.2 BOSS card
Next steps
1. Replace the M.2 BOSS card.
Installing the M.2 BOSS card
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in the Before working inside your system.
Steps
1. Align the M.2 BOSS card connector with the connectors on the system board and the guide on the M.2 BOSS card with the
guiding slot on the system board.
2. Press the touch point on the M.2 BOSS card firmly until it is fully seated.
