Table 10. Connector descriptions for on board SATA
From To
BP_PWR_1 (backplane power connector) SIG_PWR_0 (system board power connector)
BP_DST_SA1 (backplane SATA connector, cable marking BP
SA1)
SL6_PCH_SA1 (signal connector on the system board, cable
marking MB SL6)

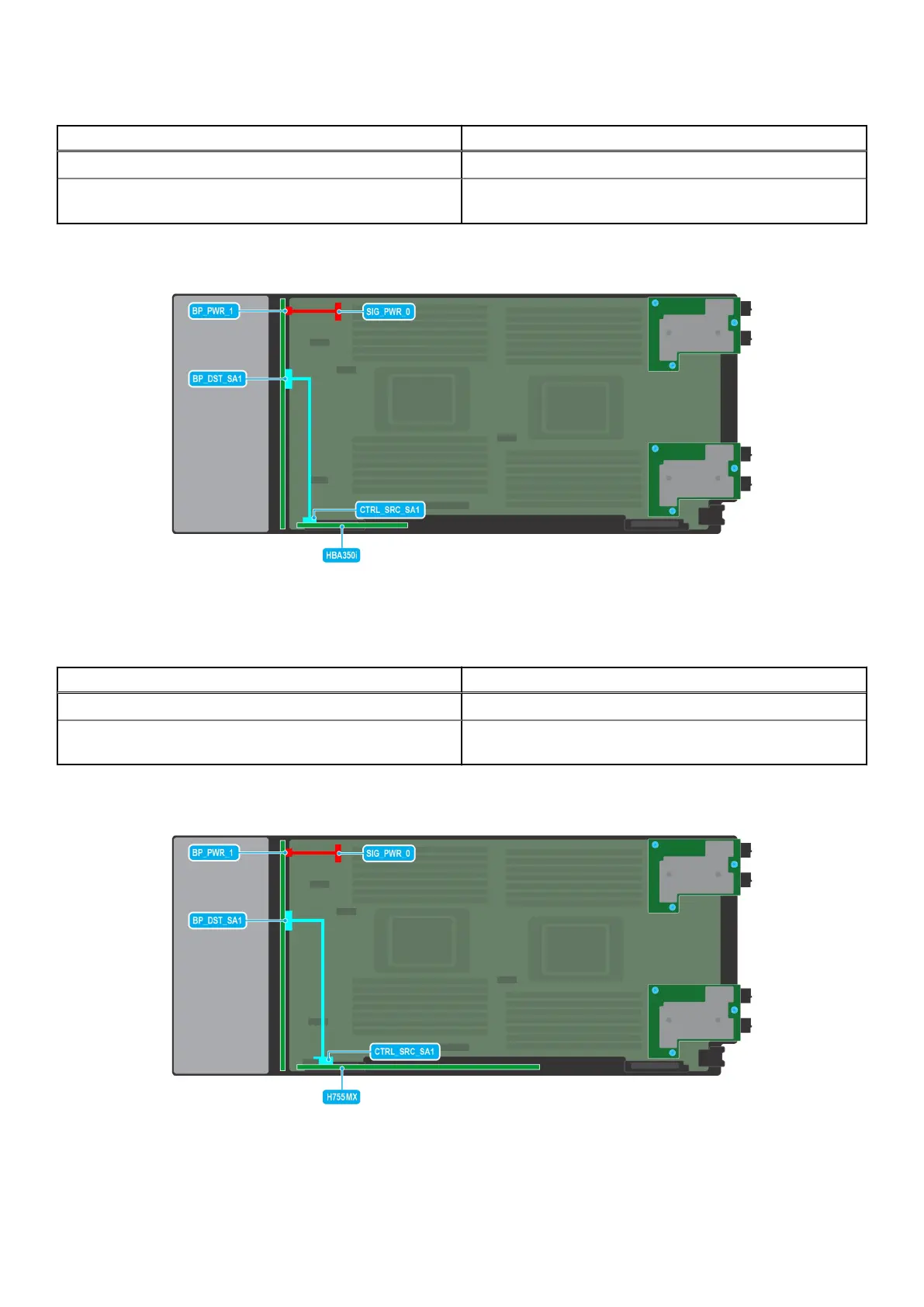

Figure 35. SAS cabling diagram of configuration 6 - 6 x 2.5-inch SAS/SATA backplane with HBA350i MX
Table 11. Connector descriptions for SAS with HBA350i MX
From To
BP_PWR_1 (backplane power connector) SIG_PWR_0 (system board power connector)
BP_DST_SA1 (backplane SAS connector, cable marking BP
SA1)
CTRL_SRC_SA1 (SAS connector of HBA350i MX controller
card, cable marking CTRL_SA1)
Figure 36. SAS cabling diagram of configuration 6 - 6 x 2.5-inch SAS/SATA backplane with H755 MX
42
Installing and removing system components
